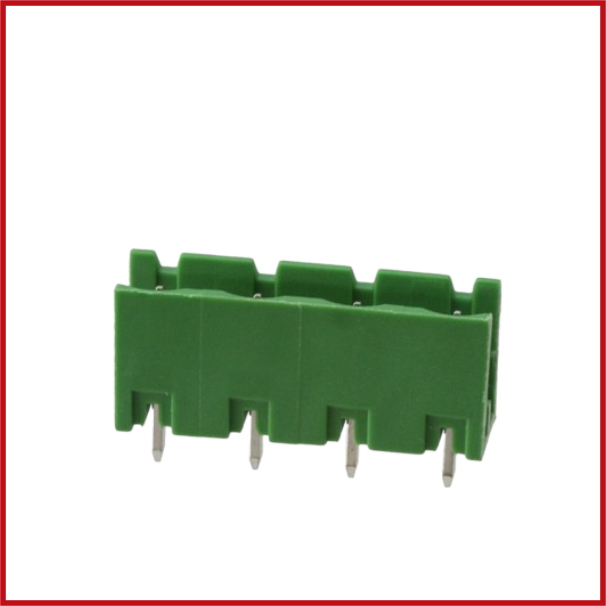

Pitch Straight PCB Header 4 Way 5.8mm
SKU: CON4-0012-000
Sold by Select Automation
Final price R 4.53
R 3.94 excl. VAT
Availability: In Stock (15 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm Pitch Straight PCB Header, 4 Way is a high-quality through-hole PCB terminal header designed to provide secure and dependable wire-to-board connectivity.
This connector, with its 4-position, single-row structure and 5.08 mm pitch, provides a strong mating interface for suitable pluggable terminal blocks, making it excellent for power and signal distribution applications.
The header's tin-plated copper alloy contacts and UL94 V-0 flame-retardant PA66 housing provide outstanding electrical conductivity, mechanical strength, and long-term durability.
Its straight (vertical) design facilitates PCB installation and ensures dependable performance in industrial, commercial, and electrical applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Header.
Number of Positions: 4 Way.
Rows: 1.
Pitch: 5.08 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination: Solder Pins.
Connection Type: Plug-In Header.
Compatible Connector: 5.08 mm Pitch Pluggable Terminal Block.
Rated Current: Up to 15 A.
Rated Voltage: Up to 300 V AC.
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
