PANEL MOUNT PLUG/ MALE 4P IP67 BAYONET
SKU: CON4-0017-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

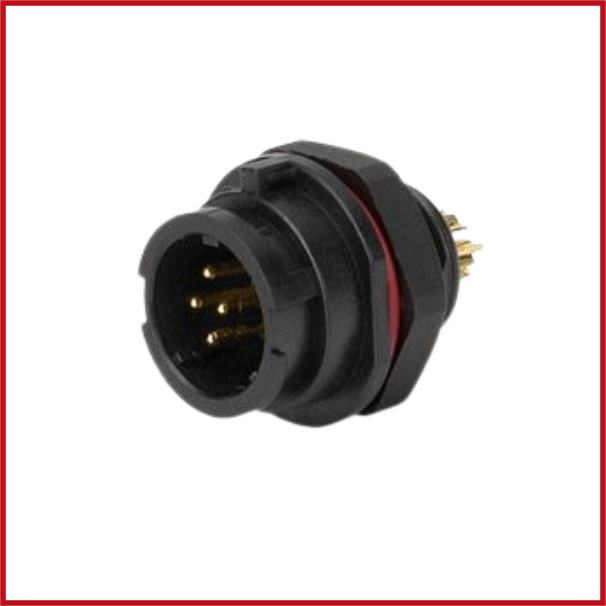

The SY1312/P-4 is a four-pin male panel-mount circular connector with a secure bayonet coupling system and an IP67 rating.
It is designed for mounting via an equipment panel or enclosure and provides a dependable connection for applications that are subjected to dust, moisture, and water.
The connector accepts cables with a diameter of 5-8mm and is rated for 13A at 250V AC, making it appropriate for both power and control connections.
The bayonet locking mechanism allows for rapid connection and removal while ensuring a secure mechanical connection during operation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Panel mount circular connector.
Connector Gender: Male / Plug.
Number of Pins: 4.
Coupling Type: Bayonet.
Ingress Protection: IP67.
Rated Current: 13A.
Rated Voltage: 250V AC.
Compatible Cable Diameter: 5–8mm.
Mounting: Panel mount.
Connection Type: Circular electrical connector.
Application: Industrial equipment, control panels, automation systems, outdoor equipment, instrumentation and electrical enclosures.
Features: IP67 protection, secure bayonet locking, 4-pin configuration and panel-mount construction.
