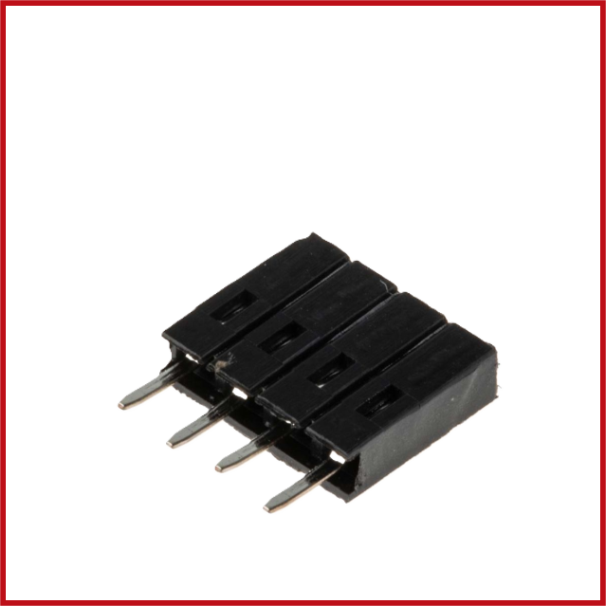

4 Way 1 Row Straight PCB Socket 2.54mm
SKU: CON4-0018-000
Sold by Select Automation
Final price R 9.52
R 8.28 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 4-Way 1-Row Straight PCB Socket, 2.54mm Pitch is a through-hole female socket connector that provides secure board-to-board and wire-to-board connections.
It has a 4-position single-row design, a 2.54 mm (0.1") pitch, and is compatible with conventional 2.54 mm male pin headers, making it perfect for electronic prototyping, embedded systems, and industrial applications.
This PCB socket, made with high-quality phosphor bronze contacts and a sturdy, flame-retardant thermoplastic housing, offers outstanding electrical conductivity, secure contact retention, and long-term dependability.
Its straight through-hole shape facilitates PCB assembly and provides great mechanical stability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Socket.
Connector Type: Female Socket Header.
Number of Positions: 4.
Number of Rows: 1.
Pitch: 2.54 mm (0.1").
Orientation: Straight (Vertical).
Mounting Type: Through-Hole (THT).
Termination: Solder.
Gender: Female.
Mating Connector: 2.54 mm Male Pin Header.
Contact Material: Phosphor Bronze.
Contact Plating: Tin Plated.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Rated Current: 3 A.
Rated Voltage: 250 V AC/DC.
Contact Resistance: ≤20 mΩ.
Insulation Resistance: ≥1000 MΩ.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
