sptaf 1/4-3.5 EL WTB Block 4 Way
SKU: CON4-0019-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

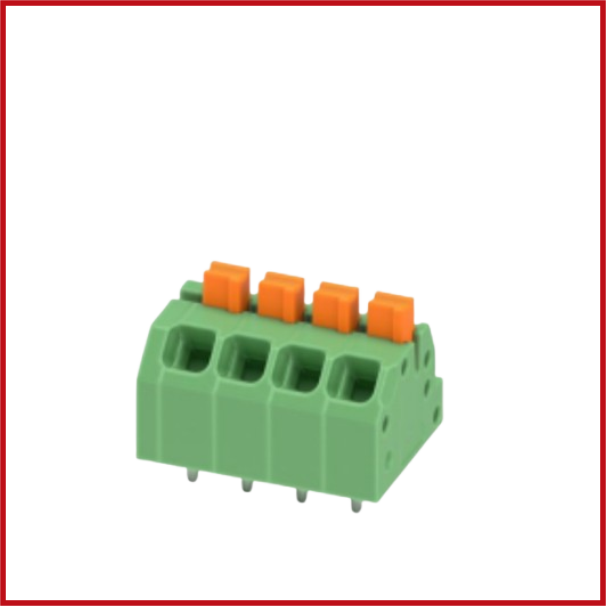

The Phoenix Contact SPTAF 1/4-3.5-EL is a 4-way PCB terminal block that uses Push-in Spring Connection technology for quick, tool-free connecting of solid conductors and ferruled wires.
With a 3.5 mm pitch and a 45° conductor entrance, this compact terminal block is suitable for high-density PCB designs with limited space.
The SPTAF series, designed for through-hole (wave soldering) PCB installation, provides a secure, vibration-resistant connection, while the inbuilt release lever makes conductor removal quick and straightforward.
It is ideal for industrial automation, control systems, power supplies, building automation, and instrumentation applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Block.
Manufacturer: Phoenix Contact.
Series: SPTAF 1/..-EL.
Model: SPTAF 1/4-3.5-EL.
Number of Positions: 4 Way.
Pitch: 3.5 mm.
Connection Method: Push-in Spring Connection.
Conductor Entry: 45°.
Mounting Type: Through-Hole PCB (Wave Soldering).
Number of Rows: 1.
Rated Current: 16 A.
Rated Voltage: Up to 320 V (depending on installation category).
Wire Size: 0.2–1.5 mm² (24–16 AWG).
Contact Material: Copper Alloy.
Housing Material: PA, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +100°C.
RoHS Compliant: Yes.
