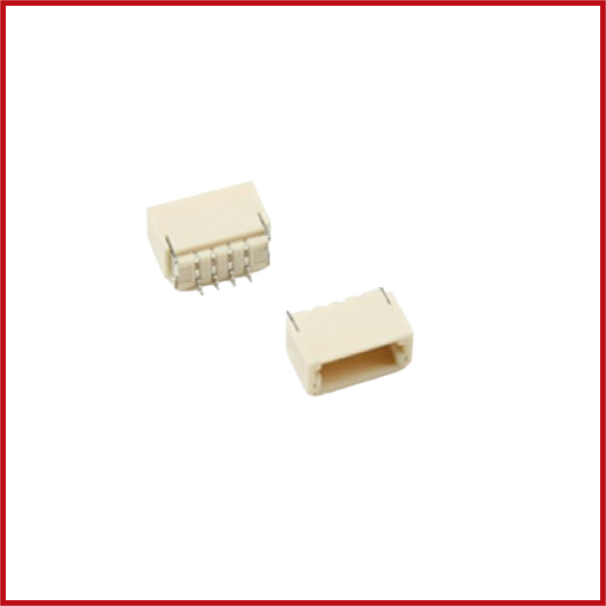

4pin JST SH 4p header (1mm pitch)
SKU: CON4-0023-000
Sold by Select Automation
Final price R 12.65
R 11.00 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The JST SH 4-Pin Header (1.0 mm Pitch) is a surface-mount (SMT) board connector intended for high-density wire-to-board applications.
It is a member of the JST SH Series with a 1.0 mm pitch that is widely used in tight spaces to provide a secure and dependable connection for signal and low-current power transmission.
The connector works with JST SH Series 4-pin crimp housings and terminals and is frequently utilized in drones, GPS modules, IMUs, cameras, displays, robots, IoT devices, and other small electronic products.
Its precision construction ensures dependable pairing, minimal contact resistance, and high vibration resistance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Wire-to-Board PCB Header.
Series: JST SH.
Number of Pins: 4.
Pitch: 1.0 mm.
Connector Type: Male Header.
Orientation: Top Entry (Vertical).
Mounting Type: Surface Mount (SMT).
Mating Connector: JST SH 4-Pin Receptacle Housing.
Rated Current: 1 A.
Rated Voltage: 50 V AC/DC.
Contact Resistance: ≤20 mΩ (initial).
Insulation Resistance: ≥100 MΩ.
Withstanding Voltage: 500 V AC for 1 minute.
Contact Material: Copper Alloy.
Contact Plating: Tin Plated.
Insulator Material: High-Temperature Thermoplastic.
Operating Temperature: -25°C to +85°C.
RoHS Compliant: Yes.
