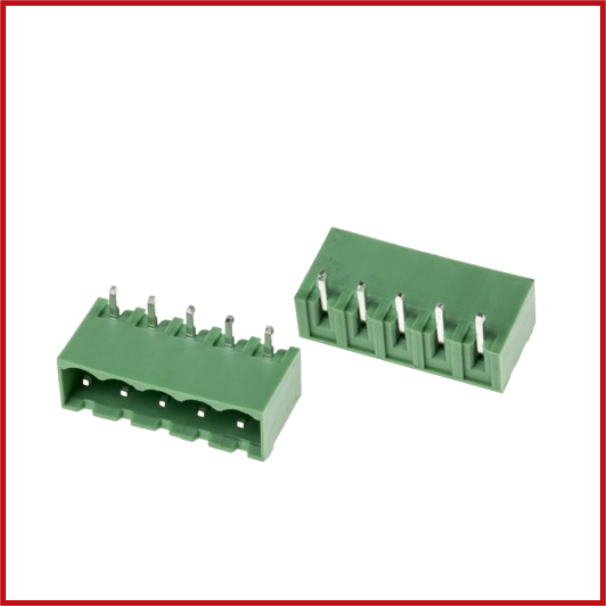

5.08 mm 5 Way PCB Header- 90 Degree (PAIRS WITH CON5-0008-000)
SKU: CON5-0007-000
Sold by Select Automation
Final price R 7.81
R 6.79 excl. VAT
Availability: In Stock (21 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm Pitch 5-Way PCB Header - 90 Degree is a high-quality through-hole PCB connector designed to provide dependable board-to-wire connections in power and signal applications.
Its 5-position, 5.08 mm pitch layout with a 90° right-angle orientation allows for easy horizontal cable connection while decreasing vertical space requirements.
This PCB header is designed to work with the CON5-0008-000 pluggable terminal block to create a secure, detachable connection that facilitates installation, maintenance, and field wiring.
It is designed for industrial, commercial, and general electronic applications and is made of long-lasting, flame-retardant materials with high-conductivity metal connections.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Header.
Number of Positions: 5 Way.
Pitch: 5.08 mm.
Orientation: 90° Right Angle.
Mounting Type: Through-Hole PCB.
Mating Connector: CON5-0008-000.
Rated Voltage: 300 V AC.
Rated Current: 15 A.
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Termination: PCB Solder Pins.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
