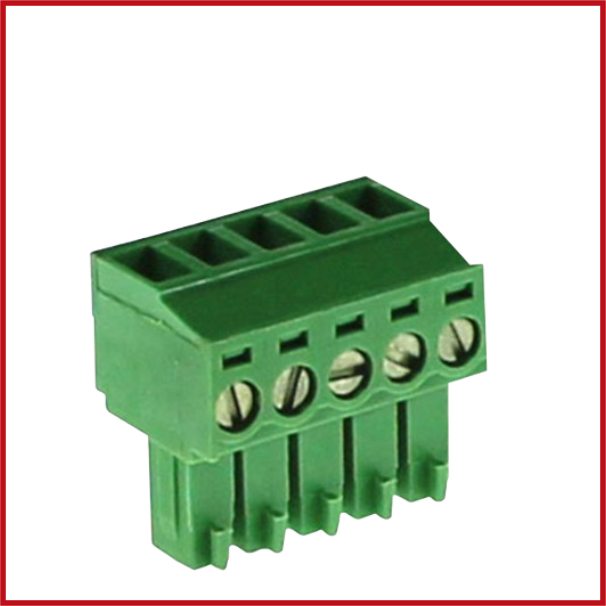

Terminal Block Pluggable 5 POS 16AWG
SKU: CON5-0009-000
Sold by Select Automation
Final price R 46.69
R 40.60 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5-Position Pluggable Terminal Block is a dependable wire-to-board connector that allows for secure and removable power and signal connections in industrial and commercial electronic applications.
With a 5-position configuration and support for up to 16 AWG conductors, this pluggable terminal block allows for quick installation, simple maintenance, and handy field wiring.
The screw-clamp termination offers excellent wire retention and consistent electrical performance, while the polarized plug-and-header design facilitates module changeover.
It is made of UL94 V-0 flame-retardant thermoplastic with tin-plated copper alloy connections, ensuring long-term durability and dependability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Pluggable Terminal Block.
Number of Positions: 5.
Connection Type: Screw Clamp.
Mounting Type: Plug-In.
Wire Gauge: Up to 16 AWG (1.5 mm²).
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66 Thermoplastic, UL94 V-0 Flame-Retardant.
Rated Current: Up to 10 A.
Rated Voltage: Up to 300 V AC.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
