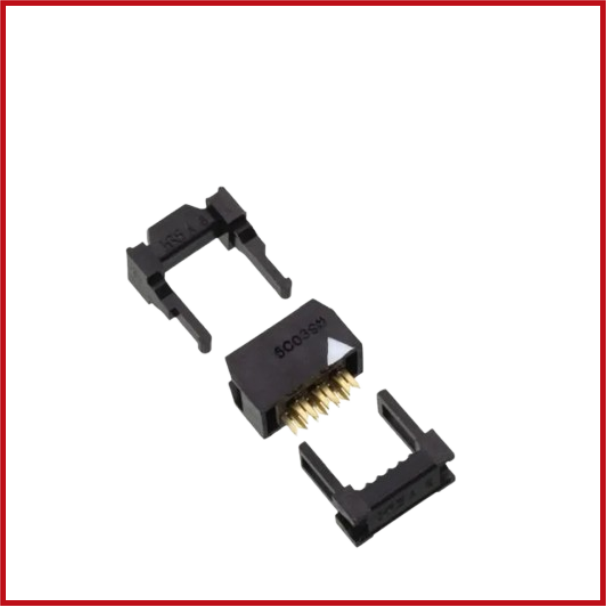

HIF3B Series 2.54mm Pitch Cable Mount IDC Connector, Socket, 6 Way, 2 Row
SKU: CON6-0004-000
Sold by Select Automation
Final price R 186.47
R 162.15 excl. VAT
Availability: In Stock (19 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The HIF3B Series 6-Way IDC Socket is a high-quality cable-mount insulation displacement connector (IDC) that allows for quick and reliable termination of 6-way flat ribbon cables.
The 2.54 mm pitch and 2-row (2 × 3) contact arrangement ensure a stable polarized connection to appropriate PCB box headers without the need for wire stripping or soldering.
The HIF3B Series IDC socket, designed for durability and ease of installation, features precision phosphor bronze contacts with gold plating for low contact resistance and robust signal transmission.
It is best suited for industrial control systems, embedded electronics, telecommunications, instrumentation, and general-purpose ribbon cable applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: IDC Ribbon Cable Socket.
Series: HIF3B.
Connector Type: Female Socket.
Number of Positions: 6 Way.
Configuration: 2 Rows (2 × 3).
Pitch: 2.54 mm.
Mounting Type: Cable Mount.
Cable Type: Flat Ribbon Cable.
Termination Type: Insulation Displacement Contact (IDC).
Mating Connector: 6-Way 2.54 mm Box Header.
Contact Material: Phosphor Bronze.
Contact Plating: Gold over Nickel.
Housing Material: Glass-Filled PBT, UL94 V-0 Flame-Retardant.
Rated Current: 1 A.
Rated Voltage: 250 V AC.
Insulation Resistance: ≥1,000 MΩ.
Contact Resistance: ≤20 mΩ.
Operating Temperature: -55°C to +85°C.
RoHS Compliant: Yes.
