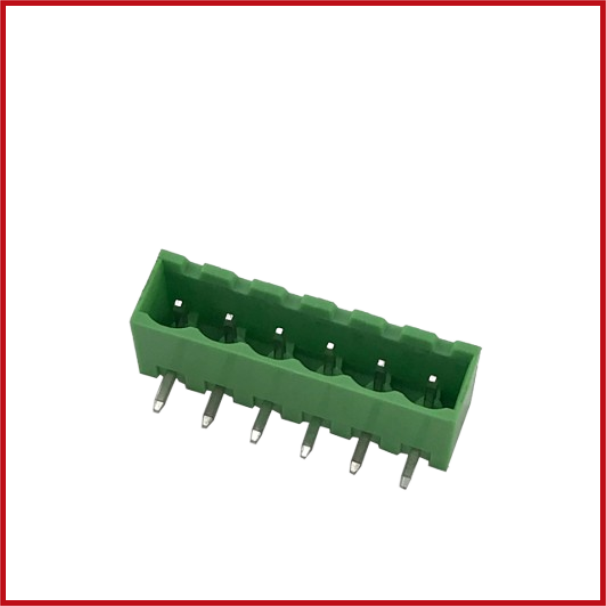

5.08mm 6-Way PCB Header (90 Degree) (PAIRS WITH CON6-0008-000)
SKU: CON6-0007-000
Sold by Select Automation
Final price R 15.19
R 13.21 excl. VAT
Availability: In Stock (63 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5.08mm 6-Way PCB Header (90 Degree) is a high-quality, through-hole PCB connector intended for secure and dependable board-to-wire connections in power and signal applications.
Its 6-position, 5.08 mm pitch layout with a 90° right-angle orientation allows for easy horizontal cable connection while minimizing vertical space requirements.
This PCB header is designed to work with the CON6-0008-000 pluggable terminal block to create a secure, detachable connection that facilitates installation, maintenance, and field wiring.
It is designed for industrial control systems, power supplies, automation equipment, and general electronic applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Header.
Number of Positions: 6 Way.
Pitch: 5.08 mm.
Orientation: 90° Right Angle.
Mounting Type: Through-Hole PCB.
Termination: PCB Solder Pins.
Mating Connector: CON6-0008-000.
Rated Current: 15 A.
Rated Voltage: 300 V AC.
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
