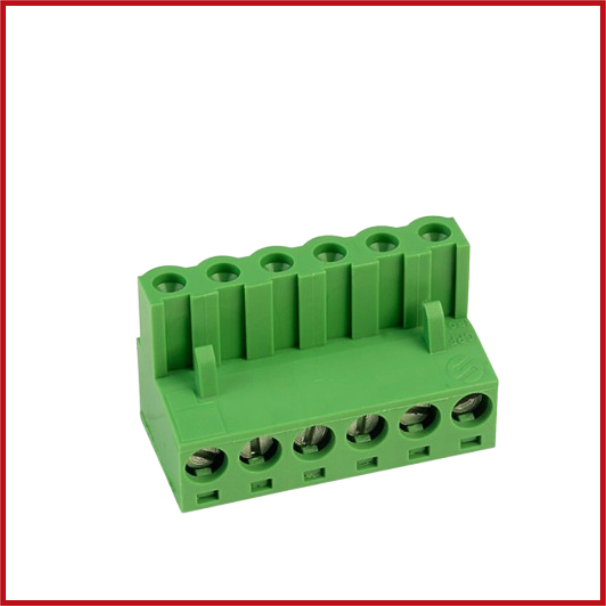

6 Way 5.08MM PITCH 90 DEG Terminal Block (PAIRS WITH CON6-0007-000)
SKU: CON6-0008-000
Sold by Select Automation
Final price R 14.15
R 12.30 excl. VAT
Availability: In Stock (8 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 6 Way 5.08mm Pitch 90° Terminal Block is a high-quality pluggable screw terminal connector that allows for secure and detachable wire-to-board connections.
It has a 6-position layout, a 5.08 mm pitch, and a 90° right-angle cable entry, allowing for straightforward horizontal wiring while eliminating vertical space requirements.
This pluggable terminal block, designed to be used with the CON6-0007-000 PCB header, provides a dependable and serviceable connection, making it perfect for industrial control systems, power supply, automation equipment, and general electronic applications.
Its flame-retardant PA66 construction, along with tin-plated copper alloy connections, ensures superior electrical performance and long-term endurance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Pluggable Terminal Block.
Number of Positions: 6 Way.
Pitch: 5.08 mm.
Orientation: 90° Right Angle.
Wire Entry: Side Entry.
Connection Type: Screw Clamp.
Mounting Type: Plug-In (Mates with PCB Header).
Compatible PCB Header: CON6-0007-000.
Rated Current: 20 A.
Rated Voltage: 300–320 V AC.
Wire Size: 0.2–2.5 mm² (24–12 AWG).
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Screw Material: Zinc-Plated Steel.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
