5.08mm Pitch Straight, PCB Terminal Block 6 Way
SKU: CON6-0009-000
Sold by Select Automation
Final price R 8.00
R 6.96 excl. VAT
Availability: In Stock (8 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

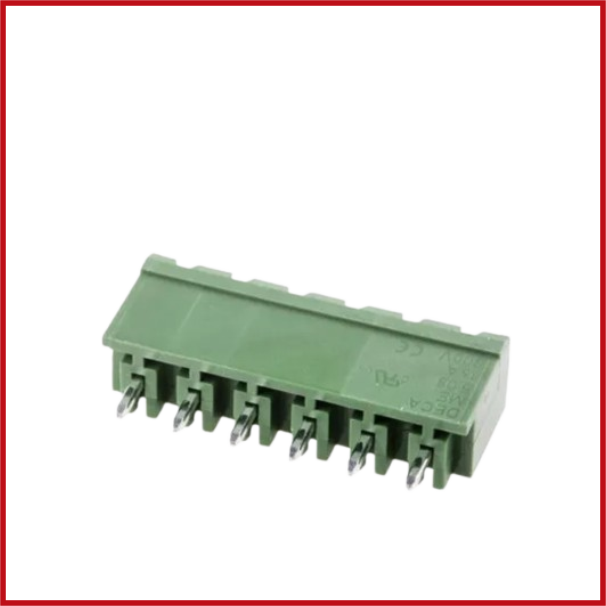

The 5.08mm Pitch Straight PCB Terminal Block, 6 Way is a tough through-hole PCB-mounted screw terminal connector that allows for secure and dependable wire-to-board connections.
Its 6-position layout, 5.08 mm pitch, and vertical wire entrance make it a suitable choice for power and signal wiring in electronic and industrial applications.
This terminal block, made from UL94 V-0 flame-retardant PA66 with tin-plated copper alloy contacts, provides high electrical conductivity, secure wire retention, and long-term durability.
Its straight, top-entry design is perfect for applications that require direct cable access and simple maintenance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Screw Terminal Block.
Number of Positions: 6 Way.
Pitch: 5.08 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Wire Entry: Top Entry.
Connection Type: Screw Clamp.
Rated Current: 15 A.
Rated Voltage: 300 V AC.
Wire Size: 28–12 AWG (0.2–2.5 mm²).
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Contact Material: Tin-Plated Copper Alloy.
Screw Material: Zinc-Plated Steel.
Colour: Green.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
