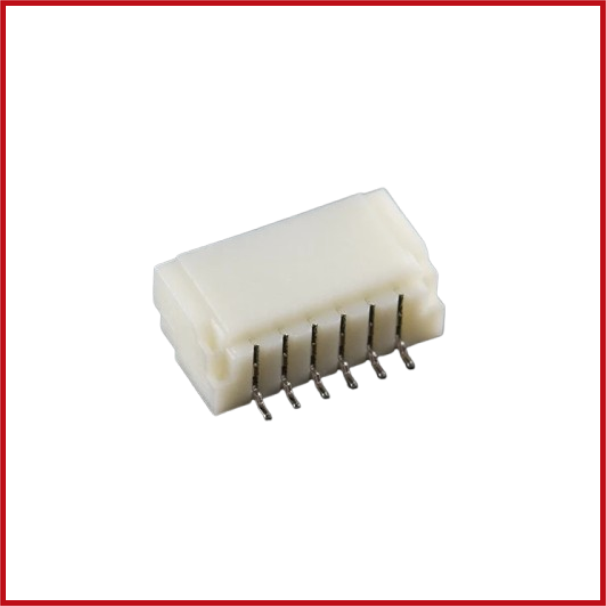

6 pin JST SH 6p header (1mm pitch)
SKU: CON6-0013-000
Sold by Select Automation
Final price R 12.65
R 11.00 excl. VAT
Availability: In Stock (20 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The JST SH 6-Pin Header (1.0 mm Pitch) is a compact surface-mount (SMT) wire-to-board connector ideal for high-density electronic applications with limited space.
This 6-pin header, part of the JST SH Series, provides a safe, reliable connection for signal and low-current power transmission in compact devices.
Compatible with JST SH Series 6-pin crimp housings and terminals, the connector has a positive locking mechanism that ensures a stable connection even in vibration-prone areas.
It is widely utilized in drones, GPS modules, sensors, cameras, LCD screens, robotics, IoT devices, and other miniature electronic equipment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Wire-to-Board PCB Header.
Series: JST SH.
Number of Pins: 6.
Pitch: 1.0 mm.
Connector Type: Male Header.
Orientation: Top Entry (Vertical).
Mounting Type: Surface Mount (SMT).
Mating Connector: JST SH 6-Pin Receptacle Housing.
Rated Current: 1 A AC/DC.
Rated Voltage: 50 V AC/DC.
Contact Resistance: ≤20 mΩ (initial).
Insulation Resistance: ≥100 MΩ.
Dielectric Withstanding Voltage: 500 V AC for 1 minute.
Contact Material: Copper Alloy.
Contact Plating: Tin Plated.
Housing Material: High-Temperature Thermoplastic.
Operating Temperature: -25°C to +85°C.
RoHS Compliant: Yes.
