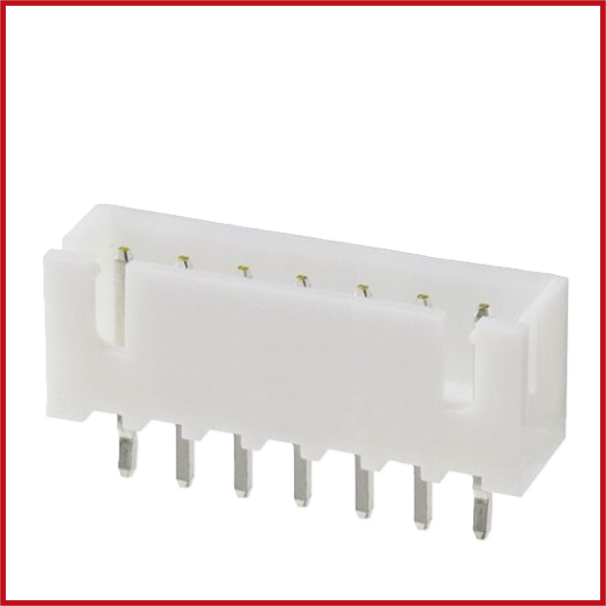

2.5mm Pitch, 7 Way, 1 Row, Straight PCB Header, Through Hole
SKU: CON7-0001-000
Sold by Select Automation
Final price R 9.26
R 8.05 excl. VAT
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2.5mm Pitch, 7 Way, 1 Row, Straight PCB Header is a through-hole wire-to-board connector that ensures secure and durable PCB connections.
Its 2.5 mm pitch and 7-pin single-row layout allow it to interface with suitable 2.5 mm pitch female connector housings, making it excellent for power and signal connections in electronic equipment.
This PCB header, built with high-quality copper alloy contacts and a sturdy high-temperature thermoplastic housing, has good electrical conductivity, mechanical strength, and long-term durability.
It is ideal for both automated and human PCB assembly in industrial, consumer, and embedded electronic applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Header.
Connector Type: Wire-to-Board Header.
Number of Positions: 7.
Number of Rows: 1.
Pitch: 2.5 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole (THT).
Termination: Solder.
Gender: Male.
Contact Material: Copper Alloy.
Contact Plating: Tin Plated.
Housing Material: High-Temperature Nylon (PA66).
Colour: White / Natural.
Rated Current: Up to 3 A.
Rated Voltage: 250 V AC/DC.
Contact Resistance: ≤20 mΩ.
Insulation Resistance: ≥1000 MΩ.
Operating Temperature: -25°C to +85°C.
RoHS Compliant: Yes.
