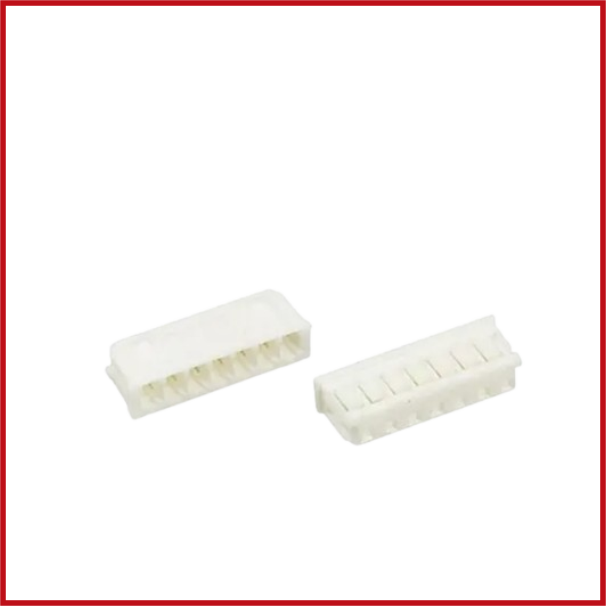

2.5mm Pitch, 7 Way, 1 Row Female Connector Housing
SKU: CON7-0002-000
Sold by Select Automation
Final price R 3.46
R 3.01 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2.5mm Pitch, 7 Way, 1 Row Female Connector Housing is a high-quality crimp-style wire-to-board connector housing that allows for secure and dependable electrical connections.
It has a 2.5 mm pitch and a 7-contact single-row design, and it accepts crimp terminals to build a long-lasting cable assembly that fits into compatible 2.5 mm pitch PCB headers.
The connector is made of strong, flame-retardant nylon (PA66), which provides high mechanical strength, electrical insulation, and resistance to wear.
It is widely used in consumer electronics, industrial control equipment, power supply, LED lighting, automotive electronics, and do-it-yourself applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Female Connector Housing.
Connector Type: Wire-to-Board Crimp Housing.
Number of Positions: 7.
Number of Rows: 1.
Pitch: 2.5 mm.
Gender: Female.
Orientation: Straight.
Mounting Type: Cable Mount.
Housing Material: Nylon (PA66) / Polyamide.
Colour: Natural (White).
Operating Temperature: -25°C to +85°C.
RoHS Compliant: Yes.
