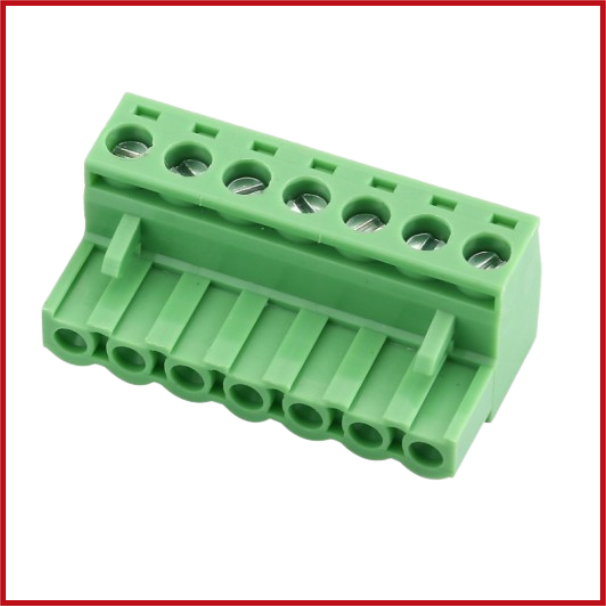

7 WAY 90 Degree 5.08MM TERMINAL BLOCK (PAIRS WITH CON7-0004-000)
SKU: CON7-0003-000
Sold by Select Automation
Final price R 8.90
R 7.74 excl. VAT
Availability: In Stock (42 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 7 Way 5.08mm Pitch 90° Terminal Block is a high-quality pluggable screw terminal connector that allows for safe, detachable wire-to-board connections in industrial and electronic applications.
It has a 7-position layout, 5.08 mm pitch, and 90° right-angle cable entry, allowing for easy horizontal wiring while reducing vertical space on the PCB.
This pluggable terminal block, designed to fit the CON7-0004-000 PCB header, provides a dependable, serviceable connection that makes installation, maintenance, and field replacement easier.
It is made of UL94 V-0 flame-retardant PA66 with tin-plated copper alloy connections, which provides high electrical conductivity, tight wire retention, and long-term durability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Pluggable Terminal Block.
Number of Positions: 7 Way.
Pitch: 5.08 mm.
Orientation: 90° Right Angle.
Wire Entry: Side Entry.
Connection Type: Screw Clamp.
Mounting Type: Plug-In (Mates with PCB Header).
Compatible PCB Header: CON7-0004-000.
Rated Current: 20 A.
Rated Voltage: 300–320 V AC.
Wire Size: 0.2–2.5 mm² (24–12 AWG).
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Screw Material: Zinc-Plated Steel.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
