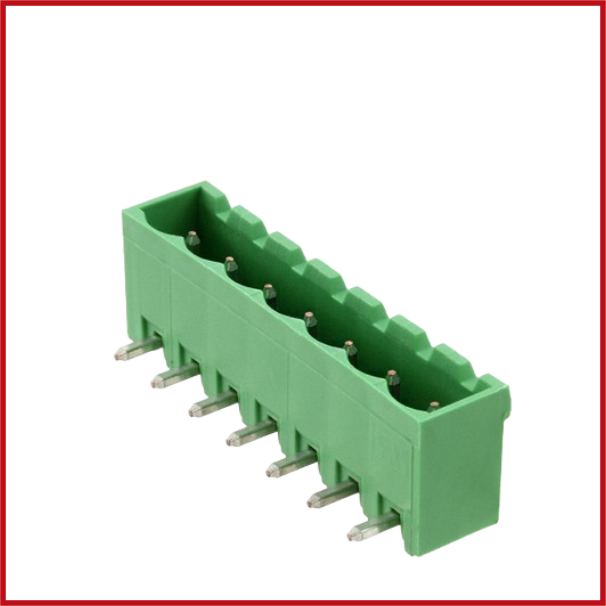

7-Way 90 deg 5.08mm pitch header block (PAIRS WITH CON7-0003-000)
SKU: CON7-0004-000
Sold by Select Automation
Final price R 19.68
R 17.11 excl. VAT
Availability: In Stock (34 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 7-Way 90° 5.08mm Pitch PCB Header Block is a high-quality through-hole PCB terminal header that allows for secure and removable board-to-wire connections.
With a 7-position, single-row layout and a 90° right-angle orientation, it allows for horizontal cable routing while decreasing the vertical area required on the PCB.
This header is intended to be used with the CON7-0003-000 pluggable terminal block to provide a dependable electrical and mechanical connection for industrial control systems, power supply, automation equipment, and general electronic applications.
It is made of UL94 V-0 flame-retardant PA66 and features tin-plated copper alloy connections for superior conductivity, durability, and long-term performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Header Block.
Number of Positions: 7 Way.
Pitch: 5.08 mm.
Rows: 1.
Orientation: 90° Right Angle.
Mounting Type: Through-Hole PCB.
Termination: PCB Solder Pins.
Connection Type: Plug-In Header.
Compatible Terminal Block: CON7-0003-000.
Rated Current: 15 A.
Rated Voltage: 300 V AC.
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
