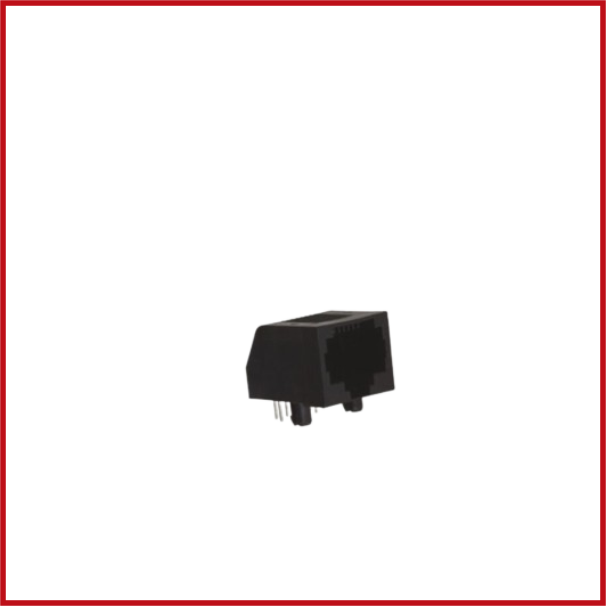

Cat3 8c-Way Female RJ45 Connector Right Angle Through Hole Unshielded 90 Degree (ARENAL)
SKU: CON8-0005-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The ARENAL Cat3 8-Way Female RJ45 Connector is a high-quality 8P8C modular connector intended for reliable voice and low-speed data connectivity.
Its 90° right-angle orientation and through-hole PCB installation give a strong and lasting connection, while horizontal cable insertion allows for efficient PCB layouts.
This unshielded (UTP) RJ45 connector is made of high-strength thermoplastic with precision phosphor bronze contacts, assuring consistent electrical performance and a long service life.
It works well with telephone systems, serial communications, embedded control devices, industrial electronics, and legacy Ethernet applications that require Category 3 performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: RJ45 Modular Jack.
Brand: ARENAL.
Connector Type: Female.
Configuration: 8P8C (8 Position, 8 Contact).
Category: Cat3.
Mounting Type: Through-Hole PCB.
Orientation: 90° Right Angle.
Shielding: Unshielded (UTP).
Contact Material: Phosphor Bronze.
Contact Plating: Gold over Nickel.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Rated Current: 1.5 A.
Rated Voltage: 125 V AC.
Insulation Resistance: ≥500 MΩ.
Contact Resistance: ≤20 mΩ.
Operating Temperature: -40°C to +85°C.
RoHS Compliant: Yes.
