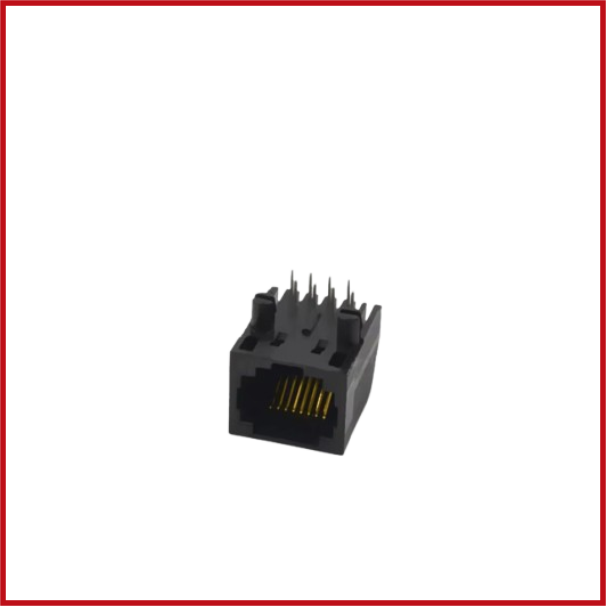

Compact RJ45 PCB 90 Degree Socket
SKU: CON8-0010-000
Sold by Select Automation
Final price R 12.65
R 11.00 excl. VAT
Availability: In Stock (71 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The RJ45 PCB 90° Socket is a small 8P8C modular Ethernet connector intended for dependable network and data transfer applications.
Its 90° right-angle orientation and through-hole PCB mounting enable for horizontal cable insertion while reducing overall assembly height, making it excellent for space-constrained designs.
This compact connector, designed to accept standard RJ45 Ethernet plugs, ensures safe mechanical retention and reliable signal transfer.
It is appropriate for net
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: RJ45 PCB Socket.
Connector Type: Female.
Configuration: 8P8C (8 Position, 8 Contact).
Mounting Type: Through-Hole PCB.
Orientation: 90° Right Angle.
Size: Compact (Small Profile).
Shielding: Unshielded (UTP).
Contact Material: Phosphor Bronze.
Contact Finish: Gold over Nickel.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Rated Current: 1.5 A.
Rated Voltage: 125 V AC.
Contact Resistance: ≤20 mΩ.
Insulation Resistance: ≥500 MΩ.
Operating Temperature: -40°C to +85°C.
RoHS Compliant: Yes.
