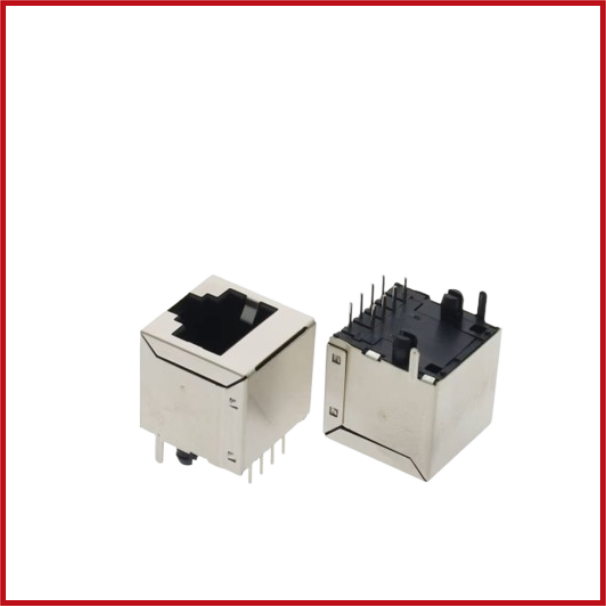

8-Way Female RJ45 Modulr Jack Vertical PCB Mount STP
SKU: CON8-0012-000
Sold by Select Automation
Final price R 44.18
R 38.42 excl. VAT
Availability: In Stock (46 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 8-Way Female RJ45 Modular Jack, Vertical PCB Mount, STP is a high-quality shielded Ethernet connector intended for dependable network and data transfer applications.
Its vertical through-hole PCB mounting design and 8P8C (8-position, 8-contact) configuration ensure a secure connection for conventional RJ45 Ethernet connections while also providing better protection against electromagnetic interference (EMI) and radio frequency interference (RFI).
Integrated metal shielding (STP) increases signal integrity in electrically noisy situations, making it suitable for industrial networking, telecommunications, embedded systems, networking equipment, and IoT devices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: RJ45 Modular Jack.
Connector Type: Female.
Configuration: 8P8C (8 Position, 8 Contact).
Mounting Type: Through-Hole PCB.
Orientation: Vertical (Top Entry).
Shielding: STP (Shielded Twisted Pair).
Contact Material: Phosphor Bronze.
Contact Plating: Gold over Nickel.
Housing Material: High-Temperature Thermoplastic (UL94 V-0).
Shield Material: Nickel-Plated Steel.
Rated Current: 1.5 A.
Rated Voltage: 125 V AC.
Insulation Resistance: ≥500 MΩ.
Contact Resistance: ≤20 mΩ.
Operating Temperature: -40°C to +85°C.
RoHS Compliant: Yes.
