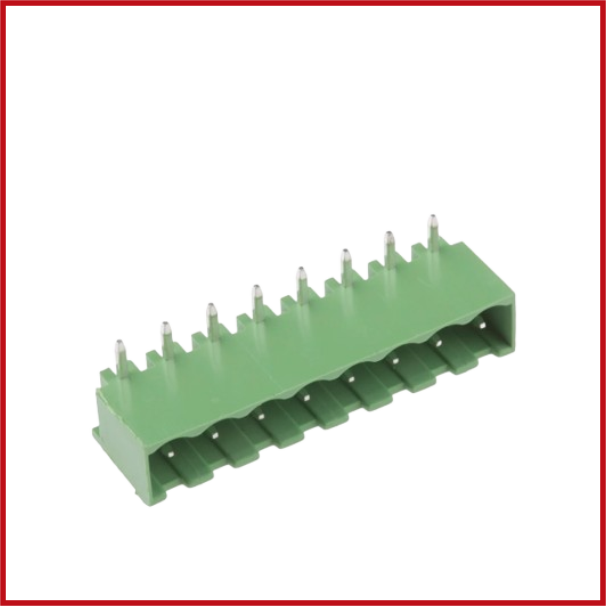

8 Way 90 degree PCB HEADER terminal Block
SKU: CON8-0013-000
Sold by Select Automation
Final price R 18.79
R 16.34 excl. VAT
Availability: In Stock (50 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 8 Way 90° PCB Header Terminal Block is a high-quality through-hole PCB terminal header that allows for secure, detachable board-to-wire connections in industrial and electronic applications.
Its 8-position, single-row layout, 5.08 mm pitch, and 90° right-angle orientation allow for efficient horizontal cable routing while minimizing vertical area on the PCB.
This header, designed to work with compatible 5.08 mm pluggable terminal blocks, provides a dependable electrical and mechanical connection, making it excellent for power supplies, industrial control systems, automation equipment, instrumentation, and general electronic assemblies.
It is made of UL94 V-0 flame-retardant PA66 with tin-plated copper alloy connections, which offers good conductivity, durability, and a long life.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: PCB Terminal Header Block.
Number of Positions: 8 Way.
Rows: 1.
Pitch: 5.08 mm.
Orientation: 90° Right Angle.
Mounting Type: Through-Hole PCB.
Termination: PCB Solder Pins.
Connection Type: Plug-In Header.
Compatible Connector: 5.08 mm Pitch Pluggable Terminal Block.
Rated Current: 15 A.
Rated Voltage: 300 V AC.
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
