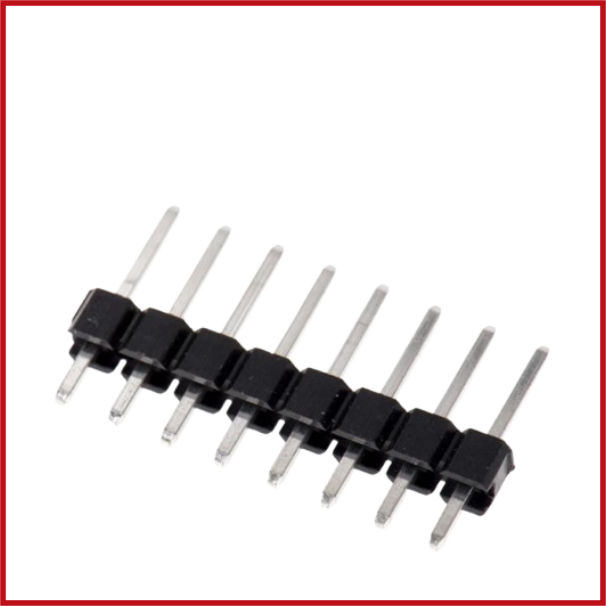

2mm 8 Way 1 Row Straight Through Hole Male Multiway Connector
SKU: CON8-0016-000
Sold by Select Automation
Final price R 31.44
R 27.34 excl. VAT
Availability: In Stock (23 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 2mm Pitch 8-Way 1-Row Straight Through-Hole Male Connector is a small wire-to-board PCB header intended for dependable signal and low-power connections in electronic applications.
This straight (vertical) through-hole male header offers a safe mating interface for suitable female connector housings with an 8-position, single-row design and a 2.0 mm pitch.
The connector, made of tin-plated copper alloy contacts and a UL94 V-0 flame-retardant thermoplastic housing, has high electrical conductivity, mechanical strength, and long-term dependability.
Its modest size makes it suitable for embedded systems, consumer electronics, industrial controllers, communication equipment, and PCB interconnections.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Male PCB Header.
Number of Positions: 8 Way.
Configuration: 1 Row.
Pitch: 2.0 mm.
Orientation: Straight (Vertical).
Mounting Type: Through-Hole PCB.
Termination: Solder.
Connection Type: Wire-to-Board.
Compatible Connector: 2.0 mm Pitch Female Connector Housing.
Contact Material: Copper Alloy.
Contact Finish: Tin Plated.
Housing Material: Thermoplastic, UL94 V-0 Flame-Retardant.
Rated Current: Up to 2 A.
Rated Voltage: Up to 250 V AC/DC.
Operating Temperature: -40°C to +105°C.
RoHS Compliant: Yes.
