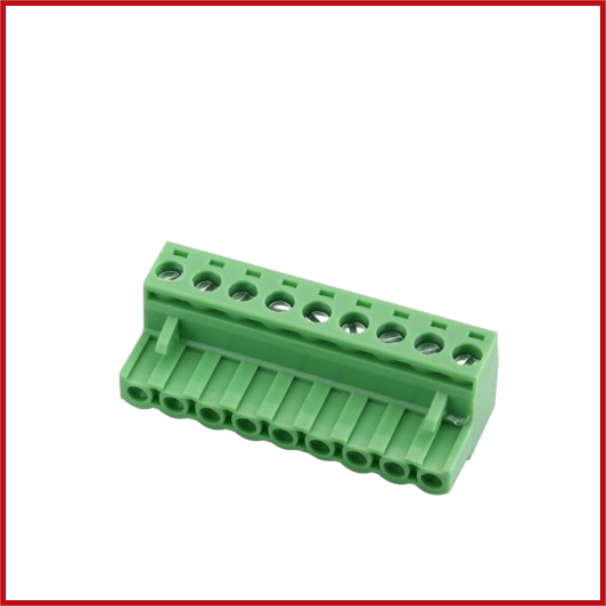

9-Way Terminal Block Right angle PCB mount, 5.08 Pitch Female
SKU: CON9-0007-000
Sold by Select Automation
Final price R 21.51
R 18.70 excl. VAT
Availability: In Stock (8 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 9-Way Terminal Block, Right Angle PCB Mount, 5.08mm Pitch, Female is a high-quality pluggable screw terminal block that allows for secure and detachable wire-to-board connection.
With a 9-position layout, 5.08 mm pitch, and 90° right-angle cable entry, it allows for convenient horizontal wiring while decreasing vertical space requirements on the PCB.
The female connector is designed to interface with a compatible 5.08 mm PCB header, enabling for convenient installation, maintenance, and field replacement.
Its UL94 V-0 flame-retardant PA66 construction, along with tin-plated copper alloy contacts, ensures good electrical performance, secure wire retention, and long-term durability.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Pluggable Terminal Block (Female).
Number of Positions: 9 Way.
Pitch: 5.08 mm.
Orientation: 90° Right Angle.
Wire Entry: Side Entry.
Connection Type: Screw Clamp.
Connector Type: Female.
Mounting Type: Plug-In (Mates with PCB Header).
Rated Current: 20 A.
Rated Voltage: 320 V AC.
Wire Size: 0.2–2.5 mm² (24–12 AWG).
Contact Material: Tin-Plated Copper Alloy.
Housing Material: PA66, UL94 V-0 Flame-Retardant.
Screw Material: Zinc-Plated Steel.
Operating Temperature: -40°C to +105°C.
Colour: Green.
RoHS Compliant: Yes.
