M16 9W MINI-MIC-PLUG AND SOCKET CONNECTOR SET
SKU: CON9-0017-000
Sold by Select Automation
Final price R 101.38
R 88.16 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

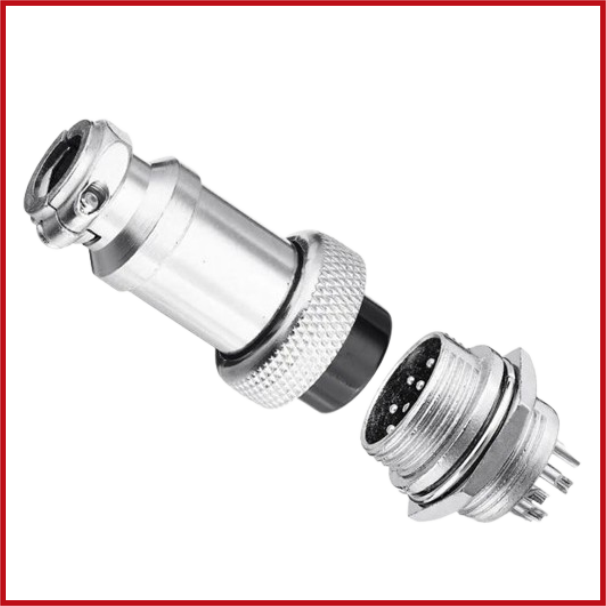

The M16 9W Mini MIC Plug and Socket Connector Set is a compact 9-pin circular connector solution designed for secure signal and power connections in industrial, electronic, and communication applications.
The set includes both a male plug and female socket, ensuring reliable connectivity with easy installation and disconnection.
Built for durability and stable electrical performance, the M16 connector features a robust housing and secure locking mechanism to prevent accidental disconnection in demanding environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Diameter: 16mm.
Temperature Range: -50 ~ +70 C.
Relative humidity: Temperature +40°C, Humidity 98%.
Atmospheric pressure: up to 4,4 kpa.
Vibration: frequency 10~100Hz, acceleration 100m/S2.
Impact: Frequency of 60~80 beats/min, acceleration of 250m/S2.
Centrifugal: acceleration 250m/S2.
Rated Voltage: 2, 3, 4, =400VAC / 5, 6, 7, 8, =250VAC.
Contact resistance: 0.005Ω.
Insulation resistance: normal conditions, not ≤ 1000MΩ; after constant warm tests, not ≤ 20MΩ. (50Hz,) 2 3 4 1500, 5 1200V, 2 3 4 1200V, 5 1000V.
Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amounts of every single.
Temperature Rise: at rated load, the contact of the temperature rise should not ≤ +50°C temperature.
Life: insertions of 500 times, the sockets and outlets should not be damage.
