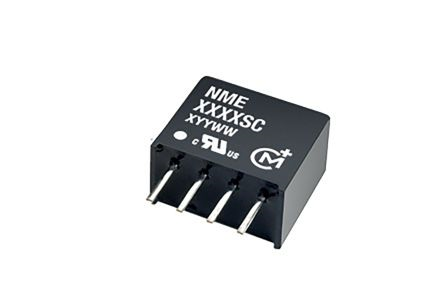

NME0505SC 1W Isolated DC-DC Converter Through Hole 5.V 1W
SKU: COV-0001-H04
Price on request
Availability: In Stock (7 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The NME0505SC 1W Isolated DC-DC Converter is a dependable and efficient power module that generates a constant 5V DC output from an input voltage range of 4.5V to 5.5V DC.
By providing electrical isolation between the input and output, it lowers interference and improves safety.
The NME0505SC 1W Isolated DC-DC Converter is a versatile and dependable way to power your electrical equipment while maintaining safety and efficiency.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Voltage (Vin): 4.5V to 5.5V DC.
Output Voltage (Vout): 5V DC.
Output Power: 1W.
Maximum Output Current (Iout): 0.2A.
Line Regulation: -1.2% to 1.2%.
Load Regulation: 12%.
Isolation Voltage: 1000V.
Efficiency: 69%.
Operating Temperature Range: -40°C to 85°C.
Package Type: SIP (Single Inline Package).
Dimensions: 11.53mm x 6.1mm x 10.0mm.
Safety Approval: UL62368-1.
