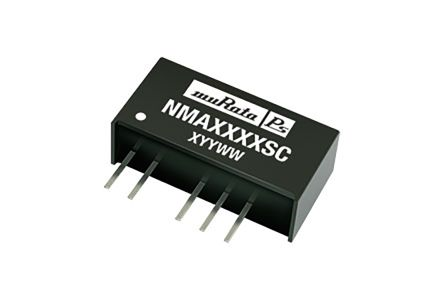

NMA1212SC 1W Isolated DC-DC Converter Through Hole, Vin 10.8 ? 13.2 V dc, Vout ±12V dc
SKU: COV-0002-H04
Sold by Select Automation
Final price R 231.86
R 201.62 excl. VAT
Availability: In Stock (6 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The NMA1212SC 1W Isolated DC-DC Converter is a compact and efficient power module that produces a consistent -12V DC output from an input voltage range of 10.8V to 13.2V DC.
This converter offers electrical isolation between the input and output, which improves safety and reduces interference.
The NMA1212SC 1W Isolated DC-DC Converter is a versatile and dependable way to power your electrical equipment while maintaining safety and efficiency.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Voltage (Vin): 10.8V to 13.2V DC.
Output Voltage (Vout): -12V DC.
Output Power: 1W.
Maximum Output Current (Iout): 0.042A.
Line Regulation: -1.2% to 1.2%.
Load Regulation: 7.5%.
Isolation Voltage: 1000V.
Efficiency: 75%.
Operating Temperature Range: -40°C to 85°C.
Package Type: SIP (Single Inline Package).
Dimensions: 19.5mm x 6.0mm x 10.0mm.
Safety Approval: UL 94V-0.
