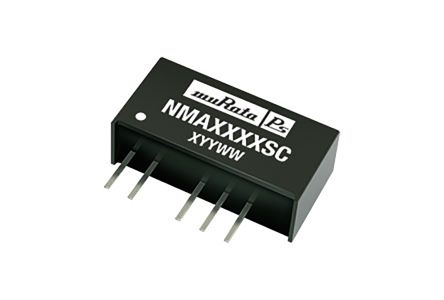

Converter DC/DC SIL 1W +/-15 V NMA1215SC
SKU: COV-0005-H04
Price on request
Availability: In Stock (15 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The NMA1215SC Isolated DC-DC Converter is a compact and efficient power module that generates dual ±15V DC output from a single input voltage.
This converter provides electrical isolation between the input and output, which improves safety and reduces noise.
The NMA1215SC Isolated DC-DC Converter is a versatile and dependable way to power your electrical equipment while maintaining safety and efficiency.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Voltage (Vin): 10.8V to 13.2V DC.
Output Voltage (Vout): ±15V DC.
Output Power: 1W.
Maximum Output Current (Iout): 33mA per output.
Line Regulation: -1.2% to 1.2%.
Load Regulation: 7.5%.
Isolation Voltage: 1000V.
Efficiency: 75%.
Operating Temperature Range: -40°C to 85°C.
Package Type: SIP (Single Inline Package).
Dimensions: 19.5mm x 6.0mm x 10.0mm.
Safety Approval: UL 94V-0.
