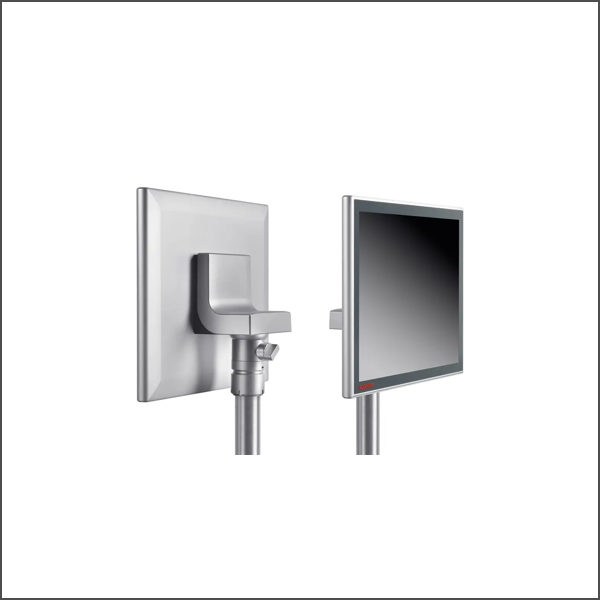

Multi-touch Control Panel with CP-Link 4 CP3921-0010

Device type: Multi-touch Control Panel with CP-Link 4 interface Housing: aluminium housing with glass front Display size/resolution: 7" 800 x 480, 12" 800 x 600, 12.1" 1280 x 800, 15" 1024 x 768, 15.6" 1366 x 768, 18.5" 1366 x 768, 19" 1280 x 1024, 21.5" 1920 x 1080 or 24" 1920 x 1080 Touch screen: multi-finger touch screen Protection rating: IP65 Connection technology: CP-Link 4 enables to connect the Control Panel at a distance of up to 100 m to the PC via a Cat.6A cable with either an integrated or separate 24 V DC power supply depending on the transmitter module. CP-Link 4 transmits USB 2.0 with 100 Mbit/s and DVI. Mounting arm adapter: 4 M6 threaded holes in distance of 100 x 100 mm in the connection block, rotatable and tiltable mounting arm adapter for mounting arm systems with 48 mm tube from top or from bottom Interfaces: 2 round connectors M12 IP65 for CP-Link 4 and optional 24 V power supply Operating temperature: 0…50 °C
