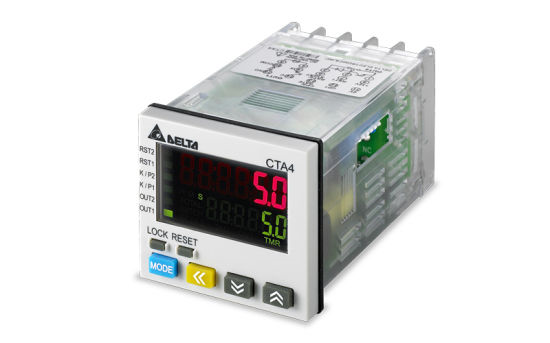

P/MNT TIME/COUNT/TAC RS485 240VAC
SKU: CTA4001A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
CTA series tachometer, counter, and timer:
The CTA 3-in-1 timer/counter/tachometer can compute frequency, speed, and event timings based on external input signals.
The CTA unit can be used for length measurement, total counting, and batch counting.
Features in general:
Voltage input (PNP) / Non-voltage input (NPN).
Display: Negative transmissive LCD display with six digits and two lines.
Results 1 and 2: Relay: maximum SPST 250 VAC 5A plus Open collector NPN transistor.
Buy currently uses Select Automation shop pricing and checkout.
Timer / Counter:
Timing interval: 999.999 hours - 0.01 seconds.
Turn on, wait, wait, repeat (pulse on, pulse off, power on).
Dual counting, batch, total, and one- or two-stage counting.
Choose a speed: 1/30/200/3k/5k/10k Cps.
Tachometer:
Measurement in Hz (can be configured to read RPM).
SERIES: CTA series.
SUPPLY VOLTAGE: 100 - 240 VAC.
OUTPUT 2: Transistor.
RS458 COMMUNICATION: Yes.
MOUNTING: Panel.
DESCRIPTION: multi-function timer-counter-tachometer.
