CU2208 Infrastructure
SKU: CU2208
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

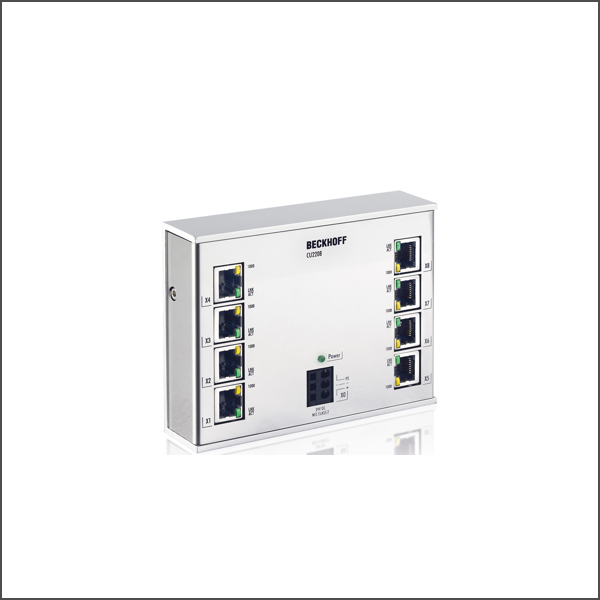

The Beckhoff Ethernet switch CU2208 offers eight RJ45 Ethernet ports for connecting Ethernet devices in a network. Switches relay incoming Ethernet frames to the destination ports. With a transmission speed of 1 GBit/s and its industrial design, it can be used universally in automation and office networks and relays incoming Ethernet frames to the destination ports.
Buy currently uses Select Automation shop pricing and checkout.
Bus system: all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode, unmanaged
Number of Ethernet ports: 8
Ethernet interface: 10BASE-T/100BASE-TX/1,000BASE-T Ethernet, RJ45
Cable length: up to 100 m twisted pair
Data transfer rates: 10/100/1000 MBit/s, IEEE 802.3u auto-negotiation, half or full duplex, automatic settings
Hardware diagnostics: 2 LEDs per channel, activity, link
Power supply: 24 (18…30) V DC, 3-pin connection (+, -, PE)
Current consumption: typ. 180 mA
Weight: 430 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL
