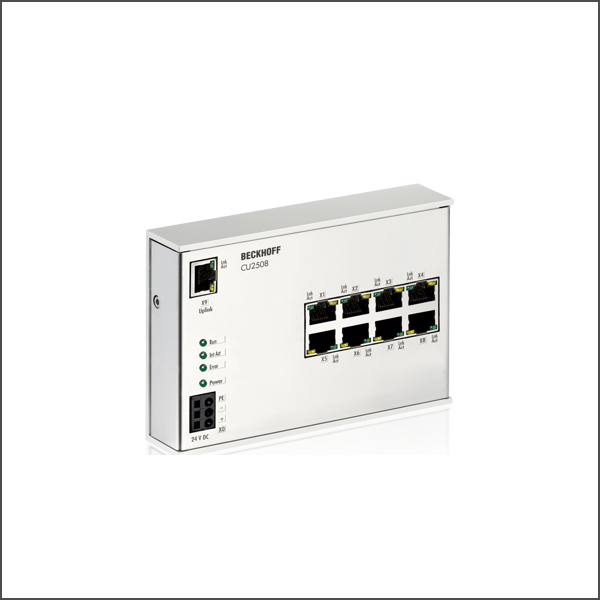

CU2508 Infrastructure
SKU: CU2508
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The CU2508 real-time Ethernet port multiplier allows the connection of up to eight Ethernet networks. The CU2508 is connected to the control IPC via a Gigabit uplink. The PC offers high-performance data transfer to the multiplier, which allocates the data to the relevant 100BASE-TX port based on an analysis of a telegram prefix and sends them time-controlled with µs precision.
Buy currently uses Select Automation shop pricing and checkout.
Protocol: Ethernet TCP/IP; real-time protocols: EtherCAT, PROFINET and others (depending on driver)
Number of Ethernet ports: 8 x 100 Mbit/s and 1 x 1 Gbit/s (uplink)
Ethernet interface: RJ45
Cable length: up to 100 m twisted pair
Data transfer rates: 100BASE-TX and 1 Gbit/s
Hardware diagnostics: LEDs
Power supply: 24 (18…30) V DC, 250 mA, 3-pin connection (+, -, PE)
Dimensions (W x H x D): approx. 146 mm x 100 mm x 30 mm
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Protect. rating/installation pos.: IP20/variable
Approvals/markings: CE, UL
