CU2608 Infrastructure
SKU: CU2608
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

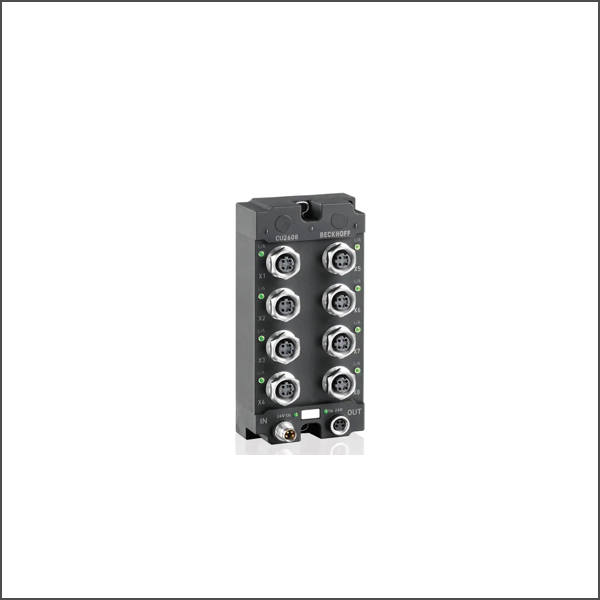

The Beckhoff Ethernet switch CU2608 offers eight D-coded M12 Ethernet ports for connecting Ethernet devices in a network. With a transmission speed of 10/100 MBit/s and its industrial design, it can be used universally in automation and office networks and relays incoming Ethernet frames to the destination ports.
Buy currently uses Select Automation shop pricing and checkout.
Bus system: all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode, unmanaged
Number of Ethernet ports: 8
Ethernet interface: 10BASE-T/100BASE-TX Ethernet, M12, D-coded, 4-pin
Cable length: up to 100 m twisted pair
Data transfer rates: 10/100 MBit/s, IEEE 802.3u auto-negotiation, half or full duplex, automatic settings
Hardware diagnostics: 1 LED per channel, activity, link
Power supply: 24 V DC (-15 %/+20 %), feed/downstream connection: M8, 4-pin
Current consumption: typ. 120 mA
Weight: approx. 300 g
Operating/storage temperature: -30…+70 °C/-40…+85 °C
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
