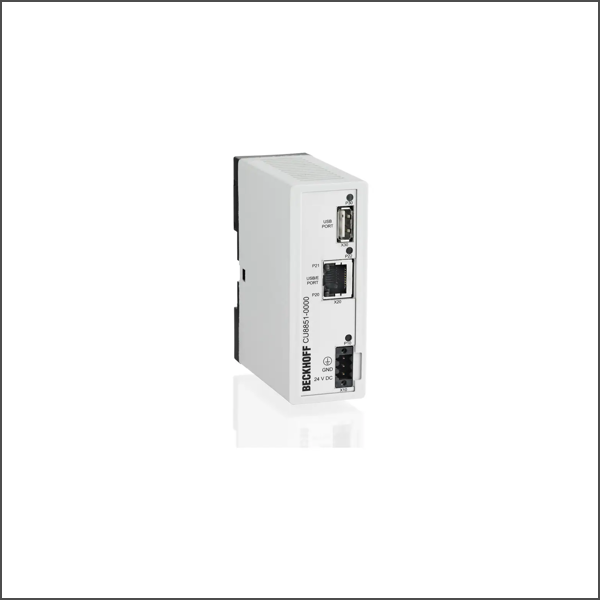

USB Extended 2.0 receiver box CU8851
SKU: CU8851
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The USB specification allows a distance of 5 m between the PC and the USB devices. A further 5 m of cable can be added by using a USB hub. In the construction of machines and plants, larger distances must be bridged without having to insert a USB hub every 5 m. The CU8801-0000 USB Extender sends the 2.0 USB signal via a Cat.5 cable that can be up to 50 m long to the CU8851 USB Extended receiver, which converts the signal back to USB. Data rates of up to 480 Mbit/s can be transmitted. Both USB Extender boxes are designed for DIN rail mounting. The CU8801-0000 transmitter is powered by the PC. The CU8851 receiver has an integrated 24 V DC power supply unit. The USB Extended 2.0 receiver is already integrated into the Control Panels from the CP29xx and CP39xx series.
Buy currently uses Select Automation shop pricing and checkout.
Type: USB Extended 2.0 receiver box
Housing: plastic housing for DIN rail installation
Interfaces: 1 USB Extended 2.0 input with RJ45 socket for up to 50 m Cat.5 cable and 1 USB output with USB A socket to be connected to an USB device in maximum 5 m distance
USB transfer rate: up to 480 Mbit/s according to USB 2.0
Power supply unit: 24 V DC power supply
Dimensions (W x H x D): 34 mm x 98 mm x 77 mm
Operating temperature: 0…+55 °C
Protection rating: IP20
Approvals/markings: CE
Additional information: quick error detection with diagnostic LEDs
