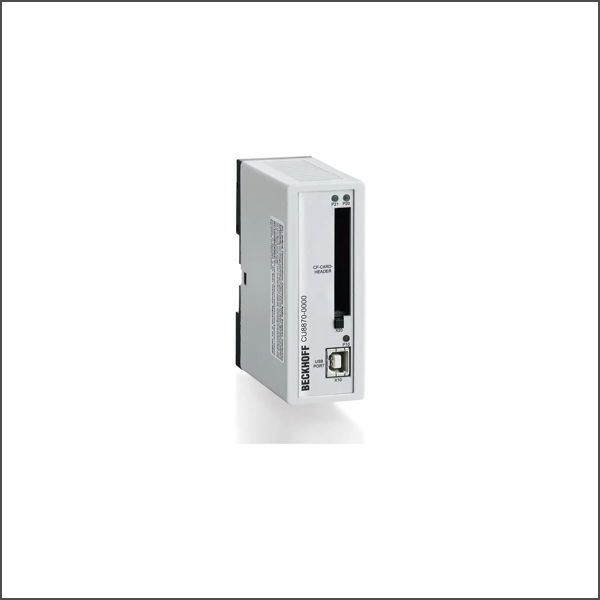

USB Compact Flash slot CU8870
SKU: CU8870
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The CU8870 offers a Compact Flash socket with USB connector. The Compact Flash cards are hot-plug capable in the CU8870 and can hence be plugged and unplugged like removable data storage devices for exchanging data with other PCs during operation.
Buy currently uses Select Automation shop pricing and checkout.
Housing: plastic housing for DIN rail installation
Interfaces: 1 x USB 2.0 input with USB B socket
Free slots: Compact Flash slot for CF cards type I and II
USB transfer rate: up to 480 Mbit/s, compatible to all USB standards
Diagnostics LED: PWR (power), LOCK (read only) and CF (access)
Power supply unit: power supply via USB
Dimensions (W x H x D): 34 mm x 98 mm x 77 mm
Operating temperature: 0…+55 °C
Protection rating: IP20
