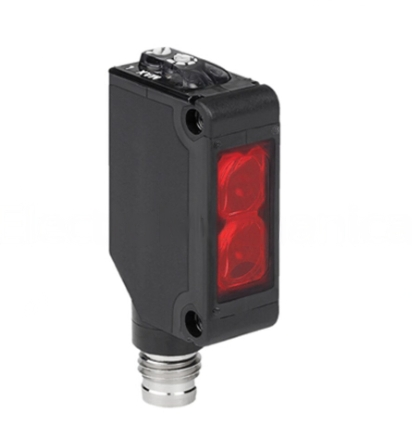

PHOTO SENSOR PNP 1met THRU BEAM
SKU: CX-483-P-Z
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
CX-400 standard compact sensors:
The CX-400 series user has access to a wide range of ultra-compact photoelectric sensors.
Three thru-beam, five retroreflective, four diffuse reflective, four trigonometric, and four varieties with foreground/background suppression are included in the series.
With its innovative ASIC (application specific integrated circuit), the sensors use up to 60% less energy than previously.
Key features:
Short-circuit protection.
Light ON/Dark ON modes.
Up to 60% less power usage.
Three thru-beam, five retroreflective, and eight reflective variants.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: CX-400 series.
DESCRIPTION: Standard compact sensors.
SUPPLY VOLTAGE: 12 - 24 VDC.
DIFFUSED: No.
RETRO-REFLECTIVE: Yes.
POLARISED RETRO: No.
THROUGH-BEAM: No.
SENSING DISTANCE (MM): 1 meter.
PNP: Yes.
NPN: No.
LIGHT-ON: Yes.
DARK-ON: Yes.
CONNECTOR: M8 plug (4 pin).
OUTPUT: PNP/NPN open-collector transistor max. 100mA.
LED INDICATION: Red: (output ON) Green: (stable light received).
HOUSING MATERIAL: PBT.
INDEX PROTECTION: IP67.
NOTE: Used together with a reflector (supplied separately).
APPLICATION: For sensing transparent objects - adjustable sensing range.
DIMENSIONS (MM): (H) 31 x (W) 11.2 x (D) 20.
