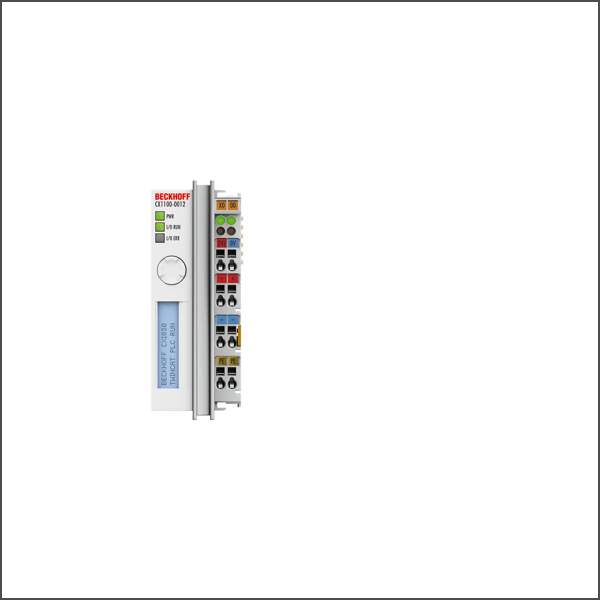

Power supply units CX1100-0012

One of three power supply modules can be selected for CX1030 systems. The power supply of all other system components is ensured via the internal PC/104 bus; no separate supply lines are required. However, the CX1100 components offer further important characteristics that go beyond a pure power supply: an integrated NOVRAM enables the fail-safe storage of process data, an LC display with two lines of 16 characters each is used for displaying system and user messages. The CX1100-0012 power supply variant serves for the connection of local I/O signals, all Beckhoff Bus Terminals (KLxxxx) can be connected. This creates a control system with a very variable, expandable I/O level with large signal variety. The I/O data are stored in a DPRAM, which is accessible by the CPU via the system bus. The power supplies of the CX system can be exchanged in the field. The CX1100-001x power supply units are electronically identical to the CX1100-000x power supply units, but with an internal heat sink and additional ventilation apertures. Although they are intended for use with the CX1030, these power supply units can also be used with the CX1020 and CX1010 in order to enable alternative mounting directions (see documentation).
