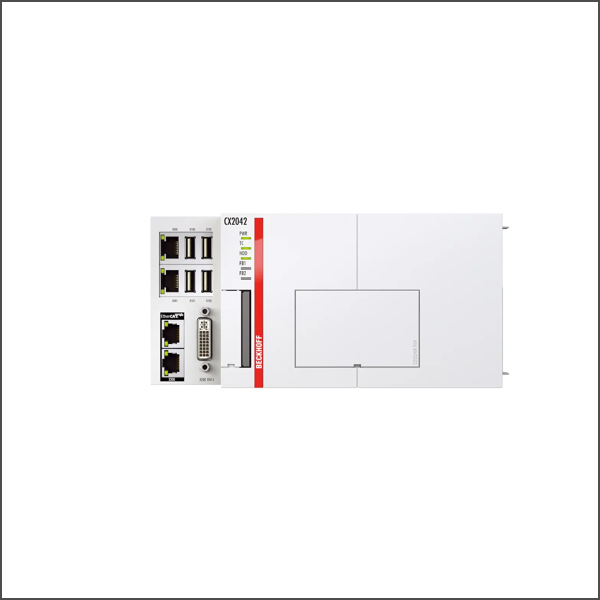

Basic CPU module CX2042-0150

Processor: Intel® Xeon® D-1527 2.2 GHz Number of cores: 4 Graphics: AMD E8860, 2 GB GDDR5 Flash memory: slot for CFast card, card not included Main memory: 8 GB DDR4 RAM (expandable ex factory to 64 GB) Persistent memory: 128 kB NOVRAM integrated Interfaces: 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 3.0, 1 x optional interface Cooling: integrated fan with ball bearings and speed monitoring Diagnostics LED: 1 x power, 1 x TC status, 1 x flash access, 2 x bus status Clock: internal battery-backed clock for time and date (battery exchangeable) Operating system: Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD Control software: TwinCAT 3 runtime (XAR) I/O connection: via power supply module (E-bus or K-bus, automatic recognition) Power supply: 24 V DC (-15 %/+20 %) Max. power consumption: 95 W Dimensions (W x H x D): 204 mm x 99 mm x 91 mm Weight: approx. 1650 g Operating/storage temperature: -25…+50 °C/-40…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protection rating: IP20 Approvals/markings: CE, UL TwinCAT 3 platform level: High Performance (70); please see here for an overview of all the TwinCAT 3 platform level
