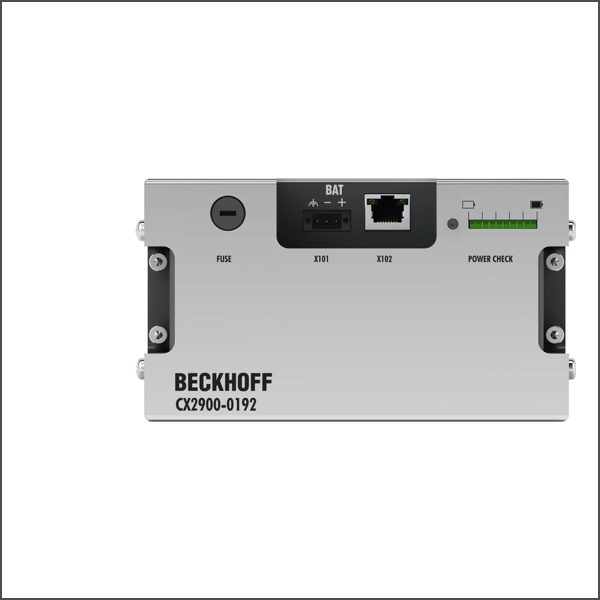

Battery pack CX2900-0192
SKU: CX2900-0192
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A matching battery pack – CX2900-0192 – is available for the CX2100-0914 power supply module with integrated UPS. The CX2100-0914 module can be used to charge the external battery pack in order to provide backup power for system and external components such as Control Panels. The CX2900-0192 battery pack in metal housing can be positioned anywhere in the control cabinet on a TS35x15 2.3 DIN rail. It is continuously monitored by the CX2100-0914 charger and is therefore always optimally charged.
Buy currently uses Select Automation shop pricing and checkout.
Housing: metal housing for mounting on norm rail TS35x15 2.3
Power supply: via CX2100-0914 power supply
Storage technology: VRLA-AGM (lead battery)
Capacity: 3.4 Ah
Fuse: 10 A
Type of connection: RJ45 socket; 3-pin socket, male
Display: –
Diagnostics LED: 1 x charge, 1 x link, 1 x charging indicator
Dimensions (W x H x D): 163 mm x 90 mm x 85 mm
Weight: approx. 2100 g
Operating/storage temperature: 0…+50 °C/0…+50 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
Approvals/markings: CE
