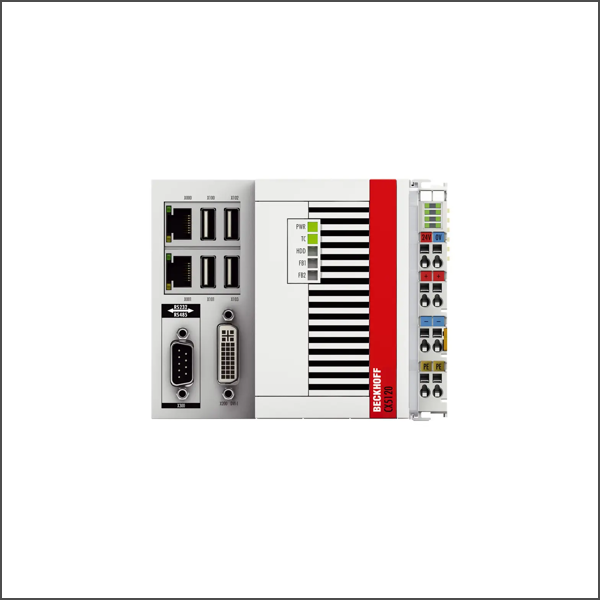

      Embedded PC CX5120-0160

      SKU: CX5120-0160

      Out of stock

      Availability: Out of Stock

      Short Description
      The CX5120 has an Intel Atom® single-core processor with a clock rate of 1.46 GHz. The hardware interfaces in this series are oriented and implemented identically to those of the existing CX5000 series. Two independent, Gigabit-capable Ethernet interfaces as well as four USB 2.0 and a DVI-I interface are available. A multitude of further connection options or gateway functions are created by an optional interface, which can be pre-fitted in the factory, as well as the I/O level, which can selectively consist either of E-bus or K-bus terminals. The CX5120 is characterized by low power consumption and fanless design. Depending on the installed TwinCAT runtime environment, the CX5120 can be used for implementing PLC or PLC/motion control projects with or without visualization. The execution of motion control applications with interpolating axis movements is also possible. Like the CX5000, the CX5100 series has a compact design; a modular device with extension modules like in the CX2000 series is not available. Windows 10 IoT Enterprise 2019 LTSC 32 bit, no TwinCAT
      CX5120-0160
      Alternative image 1
      Processor: Intel Atom® E3815, 1.46 GHz Number of cores: 1 Flash memory: slot for CFast card and microSD card, cards not included Main memory: 2 GB DDR3 RAM (not expandable) Persistent memory: integrated 1-second UPS (1 MB on CFast card) Interfaces: 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface Diagnostics LED: 1 x power, 1 x TC status, 1 x flash access, 2 x bus status Clock: internal battery-backed clock for time and date (battery exchangeable) Operating system: Windows Embedded Compact 7, Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD Control software: TwinCAT 2 runtime TwinCAT 3 runtime (XAR) I/O connection: E-bus or K-bus, automatic recognition Power supply: 24 V DC (-15 %/+20 %) Current supply E-bus/K-bus: 2 A Max. power consumption: 11 W Max. power consumption (with loading UPS): 18 W Dimensions (W x H x D): 122 mm x 100 mm x 92 mm Weight: approx. 975 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protection rating: IP20 Approvals/markings: CE, UL, with CX2900-0107 ordering option: ATEX, IECEx, cFMus Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc II 3 D Ex tc IIIC T135 °C Dc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc TwinCAT 3 platform level: Performance (40)
