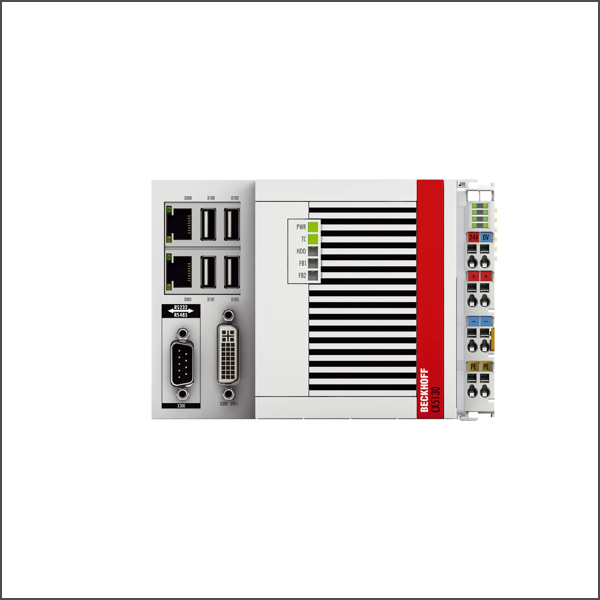

Embedded PC CX5130-0190
SKU: CX5130-0190
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The CX5130 has an Intel Atom® multi-core processor with a clock rate of 1.75 GHz. This makes genuine multi-core technology possible in the Embedded PC segment. The hardware interfaces in this series are oriented and implemented identically to those of the existing CX5000 series. Two independent, Gigabit-capable Ethernet interfaces as well as four USB 2.0 and a DVI-I interface are available. A multitude of further connection options and gateway functions is created by an optional interface, which can be pre-equipped ex factory, as well as the I/O level, which can optionally consist of either E-bus or K-bus terminals. The CX5130 is characterized by low power consumption and fanless design. Depending on the installed TwinCAT runtime environment, the CX5130 can be used for implementing PLC or PLC/motion control projects with or without visualization. The execution of motion control applications with interpolating axis movements is also possible. Like the CX5000, the CX5100 series has a compact design; a modular device with extension modules like in the CX2000 series is not available. Windows 10 IoT Enterprise 2021 LTSC 64 bit, no TwinCAT
Buy currently uses Select Automation shop pricing and checkout.
Processor: Intel Atom® E3827, 1.75 GHz
Number of cores: 2
Flash memory: slot for CFast card and microSD card, cards not included
Main memory: 4 GB DDR3 RAM (not expandable)
Persistent memory: integrated 1-second UPS (1 MB on CFast card)
Interfaces: 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface
Diagnostics LED: 1 x power, 1 x TC status, 1 x flash access, 2 x bus status
Clock: internal battery-backed clock for time and date (battery exchangeable)
Operating system: Windows Embedded Compact 7, Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows 10 IoT Enterprise 2021 LTSC, TwinCAT/BSD
Control software: TwinCAT 2 runtime
TwinCAT 3 runtime (XAR)
I/O connection: E-bus or K-bus, automatic recognition
Power supply: 24 V DC (-15 %/+20 %)
Current supply E-bus/K-bus: 2 A
Max. power consumption: 14 W
Max. power consumption (with loading UPS): 20 W
Dimensions (W x H x D): 142 mm x 100 mm x 92 mm
Weight: approx. 1095 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
Approvals/markings: CE, UL, DNV GL, with CX2900-0107 ordering option: ATEX, IECEx, cFMus
Ex marking: ATEX:
II 3 G Ex nA IIC T4 Gc
II 3 D Ex tc IIIC T135 °C Dc
IECEx:
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc
TwinCAT 3 platform level: Performance (40); please see here for an overview of all the TwinCAT 3 platform level
