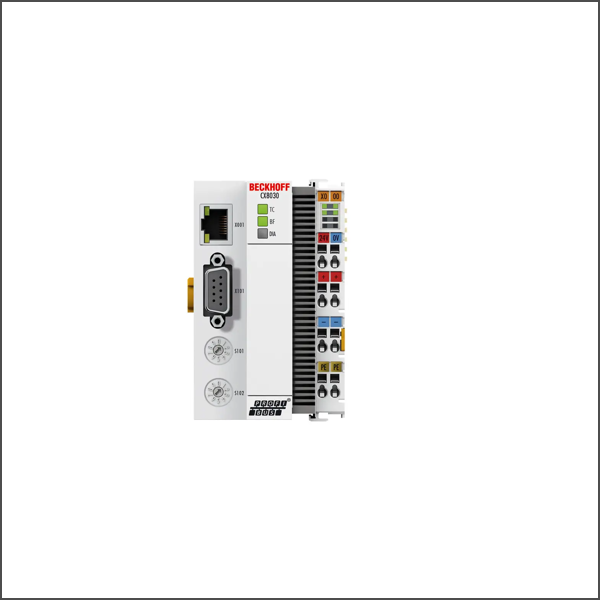

Embedded PC CX8030
SKU: CX8030
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The CX8030 is a controller with a PROFIBUS master interface. Alternatively K-bus or E-bus terminals can be series-connected; the CX8030 automatically detects which system is connected during the start-up phase. The controller is programmed with TwinCAT via the additional Ethernet interface.
Buy currently uses Select Automation shop pricing and checkout.
Processor: ARM9, 400 MHz
Number of cores: 1
Flash memory: 512 MB microSD (optionally expandable)
Main memory: 64 MB DDR2 RAM (not expandable)
Persistent memory: 1-second UPS (for 1 MB persistent data)
Programming languages: IEC 61131-3
Web visualization: yes
Online change: yes
Up/down load code: yes/yes
Interfaces: 1 x RJ45 10/100 Mbit/s, 1 x USB device (behind the front flap), 1 x bus interface
Bus interface: 1 x D-sub 9-pin socket with shielding
Diagnostics LED: 1 x TC status, 2 x bus status
Clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
Operating system: Windows Embedded CE 6
Control software: TwinCAT 2 PLC
I/O connection: E-bus or K-bus, automatic recognition
Web-based management: yes
Current supply E-bus/K-bus: 2 A
Max. power consumption: 3 W
Dimensions (W x H x D): 64 mm x 100 mm x 73 mm
Weight: approx. 180 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
Approvals/markings: CE, UL, ATEX, IECEx, cFMus
Ex marking: ATEX:
II 3 G Ex nA IIC T4 Gc
II 3 D Ex tc IIIC T135 °C Dc
IECEx:
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
cFMus:
Class I, Division 2, Groups A, B, C, D
Class I, Zone 2, AEx ec IIC T4 Gc
