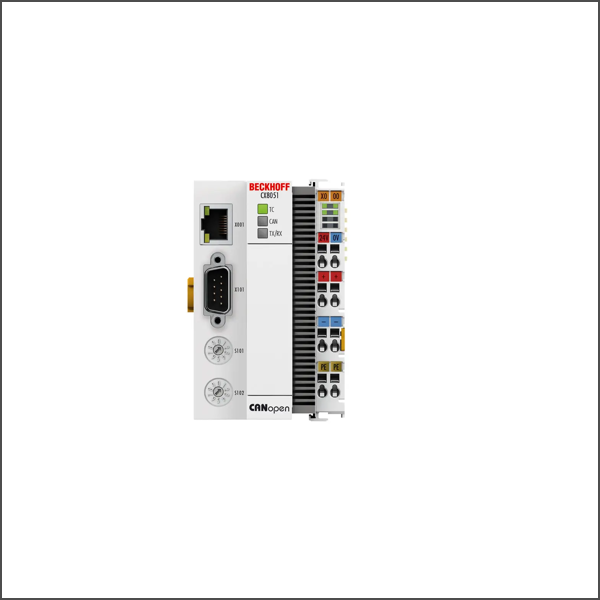

CANopen Embedded PC, slave

Processor: ARM9, 400 MHz Number of cores: 1 Flash memory: 512 MB microSD (optionally expandable) Main memory: 64 MB DDR2 RAM (not expandable) Persistent memory: 1-second UPS (for 1 MB persistent data) Programming languages: IEC 61131-3 Web visualization: yes Online change: yes Up/down load code: yes/yes Interfaces: 1 x RJ45 10/100 Mbit/s, 1 x USB device (behind the front flap), 1 x bus interface Bus interface: D-sub connector, 9-pin according to CANopen specification, galvanically decoupled Diagnostics LED: 1 x TC status, 2 x bus status Clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable) Operating system: Windows Embedded CE 6 Control software: TwinCAT 2 PLC I/O connection: E-bus or K-bus, automatic recognition Web-based management: yes Current supply E-bus/K-bus: 2 A Max. power consumption: 3 W Dimensions (W x H x D): 64 mm x 100 mm x 73 mm Weight: approx. 180 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protection rating: IP20 Approvals/markings: CE, UL, ATEX, IECEx, cFMus Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc II 3 D Ex tc IIIC T135 °C Dc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135 °C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
