      RS232/485 Embedded PC CX8180

      SKU: CX8180

      Out of stock

      Availability: Out of Stock

      Short Description
      The CX8180 has two serial interfaces: one with RS232 and one with RS485 physics. Both serial interfaces are on the D-sub socket. They are not bound to a particular protocol and can be used with the appropriate TwinCAT 3 functions for different serial communication protocols. E-bus or K-bus terminals can be attached as required; the CX8180 automatically recognizes the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT 3 via the Ethernet interface. TwinCAT 3 licenses must be ordered via the TwinCAT 3 price list.

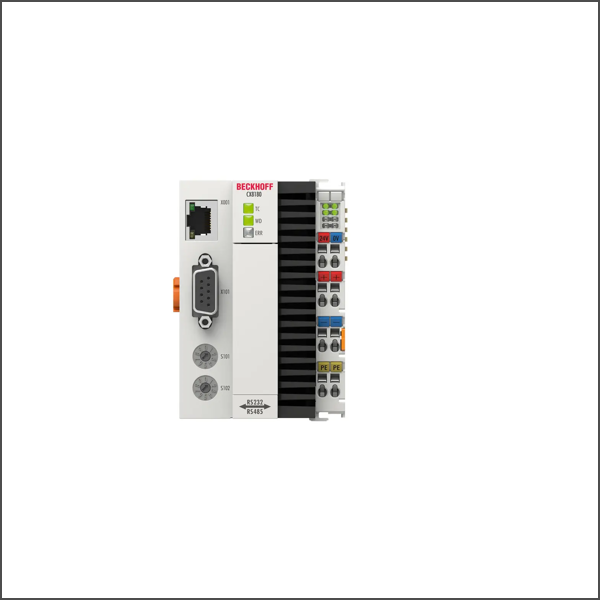

      CX8180
      Alternative image 1
      Processor: ARM Cortex™-A9, 800 MHz (TC3: 20) Number of cores: 1 Flash memory: slot for microSD card, 512 MB included (expandable) Main memory: 512 MB DDR3 RAM (not expandable) Persistent memory: 1-second UPS (for 1 MB persistent data) Interfaces: 1 x RJ45 10/100 Mbit/s, 1 x bus interface Bus interface: D-sub socket, 9-pin, 1 x RS232, 1 x RS485 Data transfer rates: 300 baud…115 kbaud Diagnostics LED: 1 x TC status, 1 x WD, 1 x error Clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable) Operating system: Windows Embedded Compact 7 Control software: TwinCAT 3 runtime (XAR) I/O connection: E-bus or K-bus, automatic recognition Power supply: 24 V DC (-15 %/+20 %) Current supply E-bus/K-bus: 2 A Max. power consumption: 4 W Max. power consumption (with loading UPS): 9 W Dimensions (W x H x D): 71 mm x 100 mm x 73 mm Weight: approx. 230 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protection rating: IP20 Approvals/markings: CE, UL TwinCAT 3 platform level: Economy (20); please see here for an overview of all the TwinCAT 3 platform level
