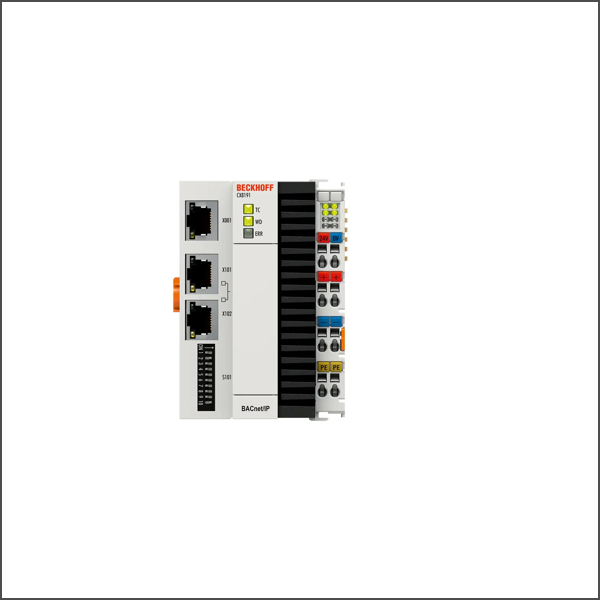

Embedded PC, ARM Cortex™-A9, 800 MHz (TC3: 20) CX8191
SKU: CX8191
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The CX8191 is a control system with a switched Ethernet port. It supports the BACnet protocol. E-bus or K-bus terminals can be attached as required; the CX8191 automatically recognizes the type of I/O system connected during the start-up phase.
The control system is programmed with TwinCAT 3 via the fieldbus interface or the additional Ethernet interface. TwinCAT 3 licenses must be ordered via the TwinCAT 3 price list. The BACnet license is already installed on the device and does not need to be ordered separately.
BACnet (Building Automation Control Network) is a standardized, manufacturer-independent communication protocol for building automation. Areas of application include HVAC, lighting control, safety and fire alarm technology.
In conjunction with the EL6861 BACnet-MS/TP terminals, the CX8191 can act as a router to MS/TP networks including support for several MS/TP networks. In addition, further protocols and services can be supported, such as OPC UA, MQTT or Modbus TCP/RTU. Therefore, the CX8191 is a virtually universal device that can be used very flexibly, from control tasks through to gateway functions.
Buy currently uses Select Automation shop pricing and checkout.
Processor: ARM Cortex™-A9, 800 MHz (TC3: 20)
Number of cores: 1
Flash memory: slot for microSD card, 512 MB included (expandable)
Main memory: 512 MB DDR3 RAM (not expandable)
Persistent memory: 1-second UPS (for 1 MB persistent data)
Interfaces: 1 x RJ45 10/100 Mbit/s, 1 x bus interface
Bus interface: 2 x RJ45 (switched)
Data transfer rates: 100 Mbit/s
Diagnostics LED: 1 x TC status, 1 x WD, 1 x error
Clock: internal battery-backed clock for time and date (battery behind the front flap, exchangeable)
Operating system: Windows Embedded Compact 7
Control software: TwinCAT 3 runtime (XAR)
I/O connection: E-bus or K-bus, automatic recognition
Power supply: 24 V DC (-15 %/+20 %)
Current supply E-bus/K-bus: 2 A
Max. power consumption: 4 W
Max. power consumption (with loading UPS): 9 W
Dimensions (W x H x D): 71 mm x 100 mm x 73 mm
Weight: approx. 230 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protection rating: IP20
Approvals/markings: CE, UL
TwinCAT 3 platform level: Economy (20); please see here for an overview of all the TwinCAT 3 platform level
