      RS232/RS485 Embedded PC CX8280

      SKU: CX8280

      Out of stock

      Availability: Out of Stock

      Short Description
      The CX8280 Embedded PC has two serial interfaces, one with RS232 and one with RS485 physics. These are both located on the D-sub socket. They are not bound to any particular protocol and can be used with the corresponding TwinCAT 3 Functions for the different serial communication protocols. The CX8280 features an ARM Cortex™-A53 dual-core processor with 1.2 GHz. The basic configuration of the CX8200 includes a 1 Gbit Ethernet interface, a USB 3.0 interface, a 1 GB LPDDR4 RAM, and a slot for a microSD card. The microSD card is not included in the scope of delivery and must be ordered separately, taking the desired memory capacity into account. E-bus or K-bus terminals can be attached as required; the CX8280 automatically recognizes the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT 3 via the bus interface or the additional Ethernet interface. TwinCAT 3 licenses must be ordered via the TwinCAT 3 price list.

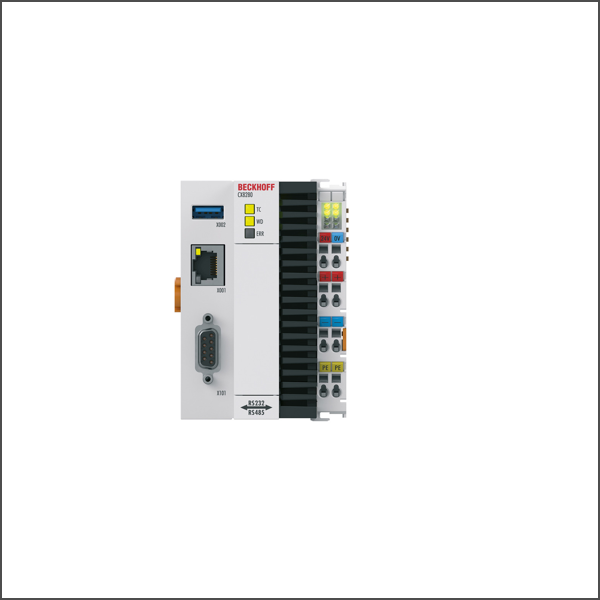

      CX8280
      Alternative image 1
      Processor: ARM Cortex™-A53, 1.2 GHz Number of cores: 2 Flash memory: slot for microSD card, card not included Main memory: 1 GB LPDDR4 RAM (not expandable) Persistent memory: 1-second UPS (for 1 MB persistent data) Interfaces: 1 x RJ45 10/100/1000 Mbit/s, 1 x USB 3.0, 1 x bus interface Bus interface: D-sub socket, 9-pin, 1 x RS232, 1 x RS485 Data transfer rates: 300 baud…115 kbaud Diagnostics LED: 1 x TC status, 1 x WD, 1 x error Clock: internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days) Operating system: TwinCAT/BSD Control software: TwinCAT 3 runtime (XAR) I/O connection: E-bus or K-bus, automatic recognition Power supply: 24 V DC (-15 %/+20 %) Current supply E-bus/K-bus: 2 A Max. power consumption: 5 W Max. power consumption (with loading UPS): 10 W Dimensions (W x H x D): 71 mm x 100 mm x 73 mm Weight: approx. 265 g Operating/storage temperature: -25…+60 °C/-40…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4 Protection rating: IP20 Approvals/markings: CE TwinCAT 3 platform level: Economy (20); please see here for an overview of all the TwinCAT 3 platform level
