DB3 28V, 36V 2-Pin
SKU: DIA-0004-D03
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

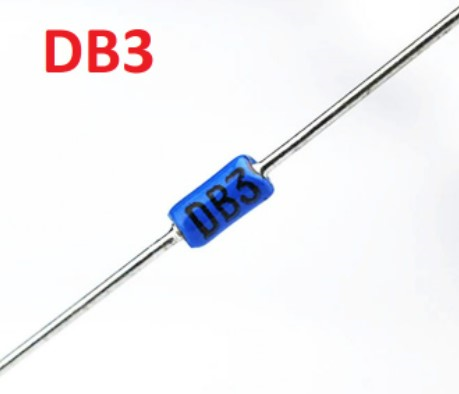

DB3 28V, 36V 2-Pin :
The DB3 is a commonly used DIAC (DIode for Alternating Current) device designed for triggering applications, such as in light dimmers, motor speed controllers, and other AC control circuits. It provides a sharp switching action at a specified breakdown voltage and is typically used in phase control and switching applications. It has a breakdown voltage range of 28V to 36V and is housed in a 2-pin DO-35 package.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Breakdown Voltage (V_BO): 28 V to 36 V
Rated Current: 2 A
Peak On-State Current (I_T): 2 A
Package Type: 2-Pin DO-35
Surge Current: 5 A
Holding Voltage: 4.5 V
Capacitance (C): 5 pF
Power Dissipation: 1 W
Operating Temperature Range: -40°C to 125°C
