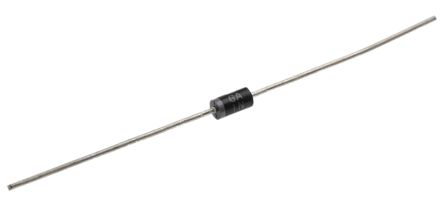

Zener Diode 15V 5% 3W 2 PIN IN5929BG
SKU: DIO-0001-B01
Sold by Select Automation
Final price R 7.82
R 6.80 excl. VAT
Availability: In Stock (39 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Zener Diode 15V 5% 3W 2 PIN IN5929BG:
The IN5929BG is a 15V Zener diode designed for voltage regulation and surge protection in electronic circuits. It offers a stable reverse breakdown voltage of 15V with a 5% tolerance, making it suitable for applications requiring precise voltage clamping. The 3W power rating allows it to handle moderate power levels, commonly used in power supply circuits, voltage regulation, and protecting sensitive components from over-voltage conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Zener Voltage (V_Z): 15 V
Tolerance: 5%
Power Dissipation: 3 W
Package Type: 2-Pin DO-15
Reverse Leakage Current (I_R): 5 µA at V_Z
Zener Impedance (Z_Z): 10 Ω
Operating Temperature Range: -55°C to 150°C
Maximum Reverse Current: 1 A at V_Z
Applications: Voltage regulation, surge protection, power supply circuits
