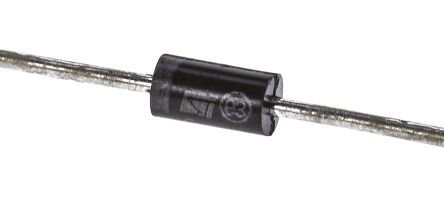

Schottkey Diode 1A 40V IN5819
SKU: DIO-0024-B01
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Schottkey Diode 1A 40V IN5819:
The IN5819 is a Schottky diode known for its low forward voltage drop and fast switching characteristics. With a maximum reverse voltage rating of 40V and a current handling capacity of 1A, it is widely used in power supplies, voltage clamping, and rectification circuits that require low-loss operation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Peak Inverse Voltage (PIV): 40 V
Average Forward Current (I_F(av)): 1 A
Forward Voltage (V_F): 0.45 V (at I_F = 1 A)
Reverse Leakage Current (I_R): 1 µA (at V_R = 40 V)
Reverse Recovery Time (t_rr): Negligible (fast switching)
Package Type: DO-41
Operating Temperature Range: -65°C to 150°C
Applications: Power rectification, voltage clamping, DC-DC converters, low-voltage power supplies, and reverse battery protection
