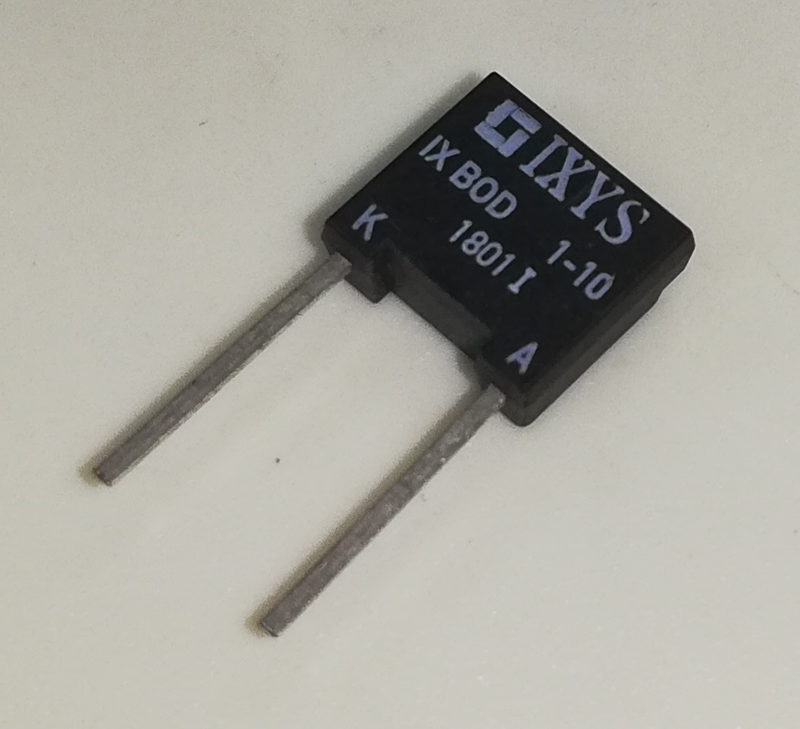

IXYS IXBOD 1 -10 Single Breakover Diode
SKU: DIO-0055-B01
Sold by Select Automation
Final price R 370.35
R 322.04 excl. VAT
Availability: In Stock (22 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
IXYS IXBOD 1 -10 Single Breakover Diode:
The IXYS IXBOD 1-10 is a single breakover diode designed to handle high-voltage transient conditions. It provides overvoltage protection by limiting the voltage within a specified range, often used in power electronics for protection against voltage spikes in applications such as power supplies, surge protection, and fault protection systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Breakover Voltage (VBO): 10V
Forward Current (IF): 1A
Reverse Current (IR): 1µA at rated reverse voltage
Package Type: Typically axial or through-hole
Operating Temperature Range: -40°C to +125°C
Polarity: Cathode marked with a band
Voltage Clamping Range: Used in circuits for overvoltage protection, limiting the voltage to safe levels
