RF1001 Fast Recovery Diode
SKU: DIO-0087-B02
Sold by Select Automation
Final price R 17.68
R 15.37 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

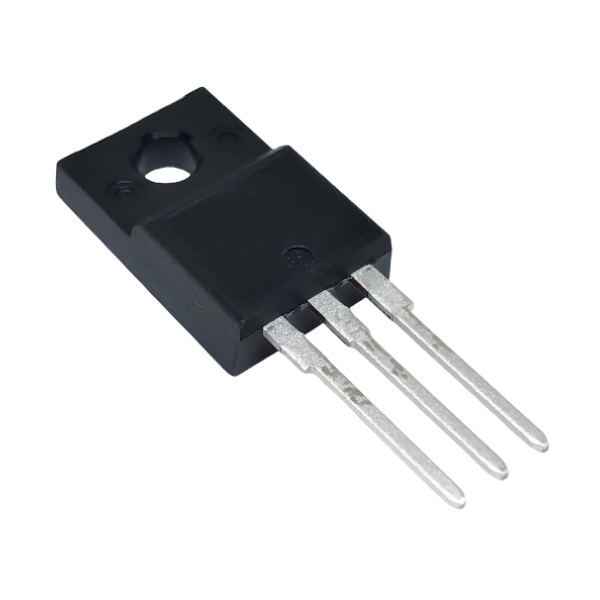

The RF1001 T2D is a fast recovery diode manufactured by ROHM, designed for high-frequency rectification applications. Built using silicon epitaxial planar construction, it offers ultra-low forward voltage drop and very fast recovery characteristics, making it ideal for minimizing switching losses in power conversion circuits. Housed in a TO-220FN package, this diode is configured as a cathode-common type and is suitable for leaded mounting styles. Although it's not recommended for new designs, it remains a reliable choice for existing systems requiring efficient and rapid switching performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Package Type: TO-220FN (3-pin)
Configuration: Cathode-common
Average Rectified Forward Current (IO): 10 A
Peak Forward Surge Current (IFSM): 80 A
Maximum Reverse Voltage (VR): 200 V
Maximum Forward Voltage (VF): 0.93 V @ 5 A
Maximum Reverse Current (IR): 0.01 mA @ 200 V
Reverse Recovery Time (trr): 30 ns @ IF = 500 mA, IR = 1 A
Junction Temperature (Tj): Up to 150 °C
Storage Temperature Range: −55 °C to +150 °C
