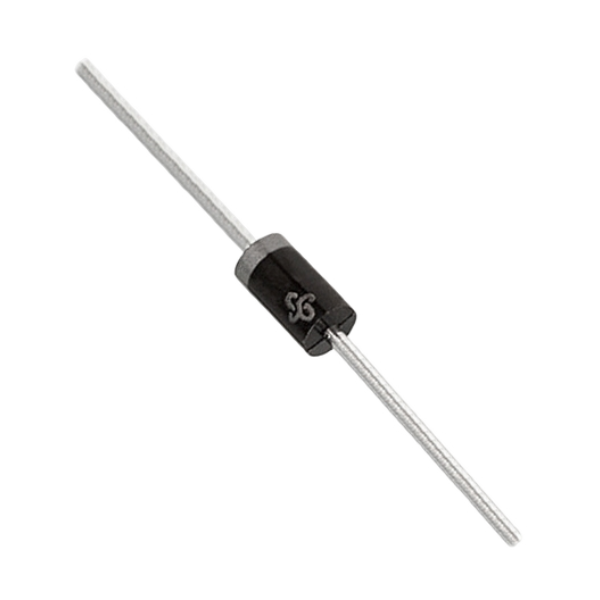

FR104 50v 1A Diode (10pcs)
SKU: DIO-0088-B02
Sold by Select Automation
Final price R 0.98
R 0.85 excl. VAT
Availability: In Stock (42 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The FR104 Diode is a fast recovery rectifier designed for high-speed switching applications. It’s commonly used in power supplies, voltage converters, and rectifier circuits where quick response and low leakage are essential. With a reverse voltage rating of 400V and a forward current capacity of 1A, it offers reliable performance in compact form. Its fast recovery time of 150ns makes it ideal for minimizing switching losses in high-frequency circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Fast Recovery Rectifier Diode
Maximum Repetitive Peak Reverse Voltage (Vrrm): 400V
Maximum RMS Reverse Voltage (Vr): 280V
Maximum Average Forward Current (If): 1A
Maximum Forward Voltage Drop (Vf): 1.3V at 1A
Reverse Recovery Time (trr): 150ns
Typical Junction Capacitance: 15pF
Package Type: DO-41
Operating Temperature Range: –65°C to +150°C
Polarity: Cathode marked with a band
Weight: 0.33 grams
